Figure 5

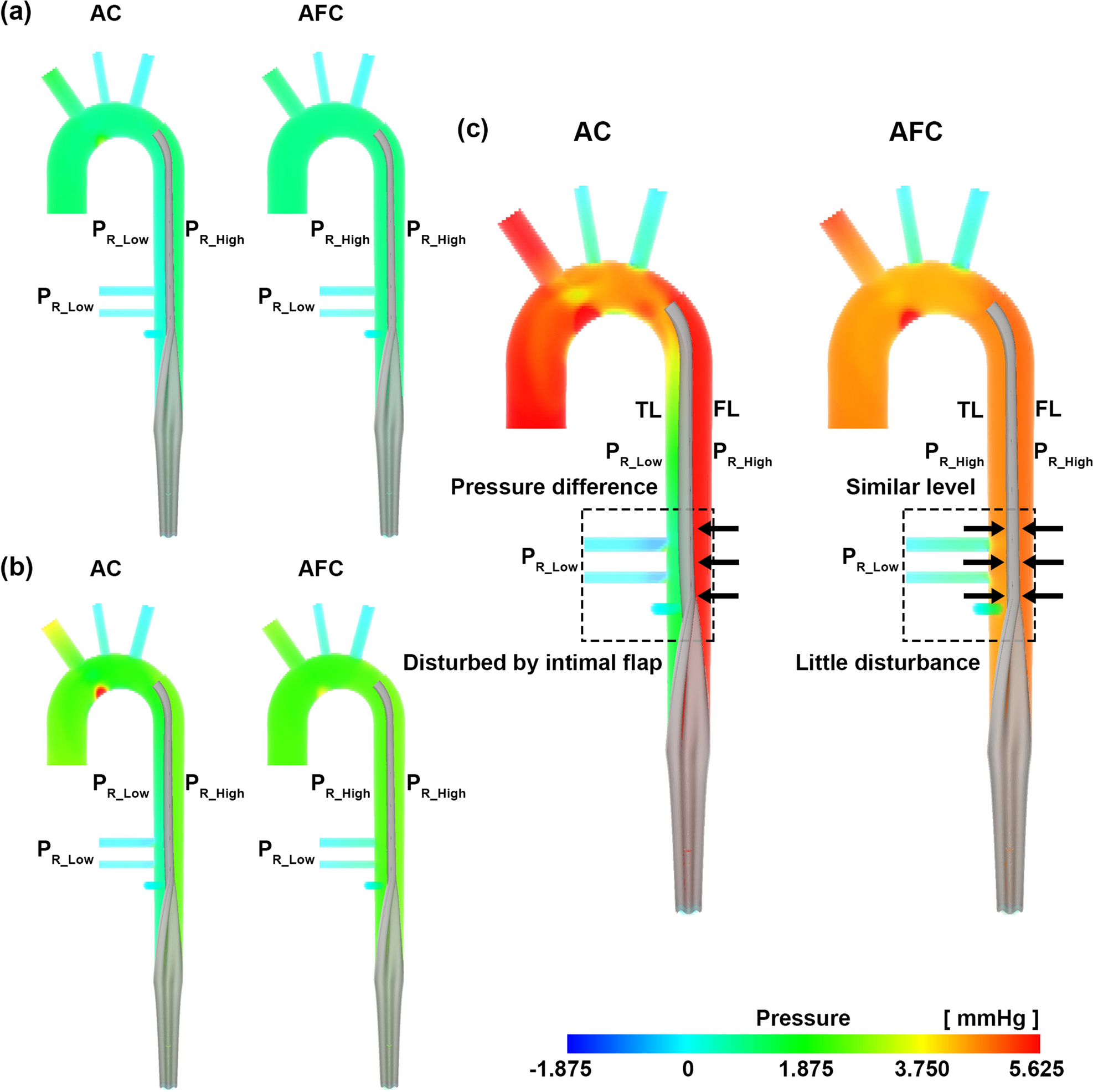

Pressure fields of AC and AFC. (a) 3 L/min, (b) 5 L/min, and (c) 7 L/min. These images were made with Ensight (v.2021 R1, https://www.ansys.com) using the FSI data.
Figure 5 | Scientific Reports
Pressure fields of AC and AFC. (a) 3 L/min, (b) 5 L/min, and (c) 7 L/min. These images were made with Ensight (v.2021 R1, https://www.ansys.com) using the FSI data.
