From: Spatio-temporal expression pattern of Raffinose Synthase genes determine the levels of Raffinose Family Oligosaccharides in peanut (Arachis hypogaea L.) seed

Figure 2The alternative text for this image may have been generated using AI.

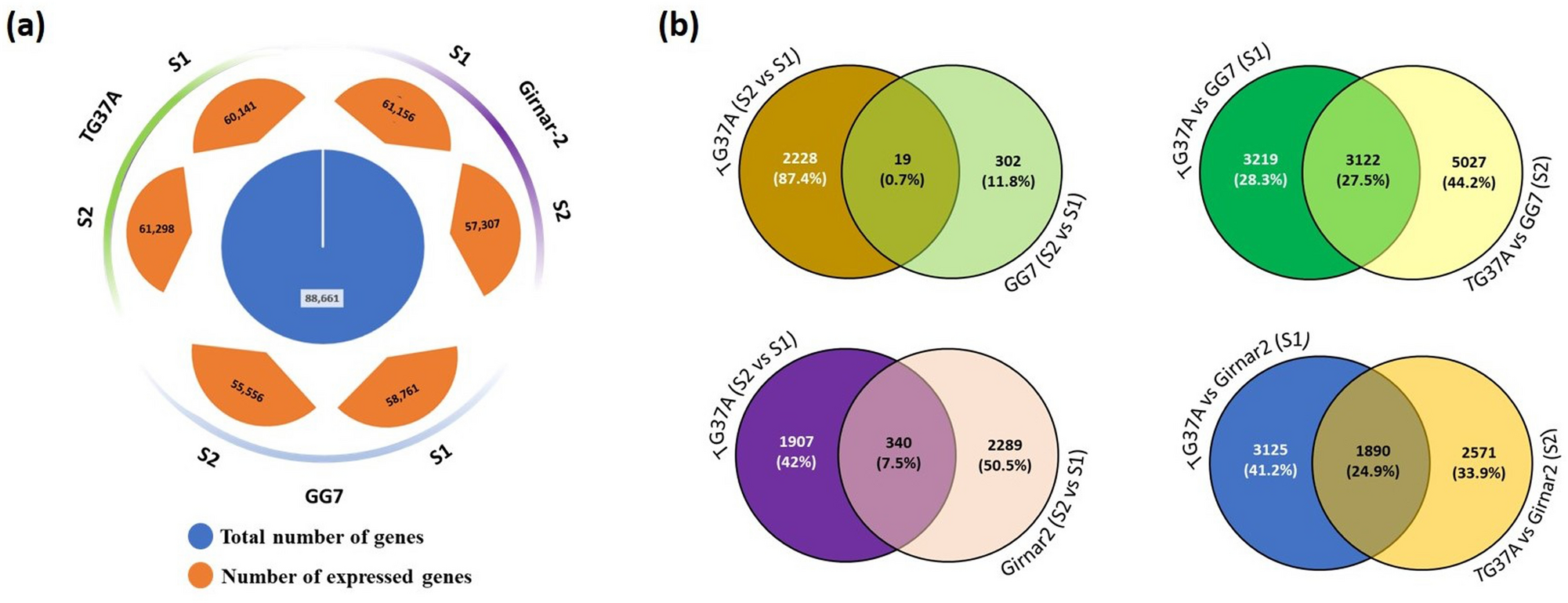

Diagrammatic representation of the number of Differentially Expressed Genes (DEGs) in different combinations of peanut seed sample. (a) Genes with at least one mapped read have been considered. The total number of genes has been represented in a blue circle while the number of expressed genes (orange) in TG37A (green), Girnar 2 (purple), and GG7 (light blue) at maturing seed (S1) stage and matured seed (S2) stage have been represented using different colors. (b) The figure has been partially designed using venny 2.1 webtool (https://bioinfogp.cnb.csic.es/tools/venny/index.html). Seed maturity stages has been denoted by S1 (maturing seed stage) and S2 (matured seed stage). Combinations of two samples have been represented with versus (vs).
