Figure 2

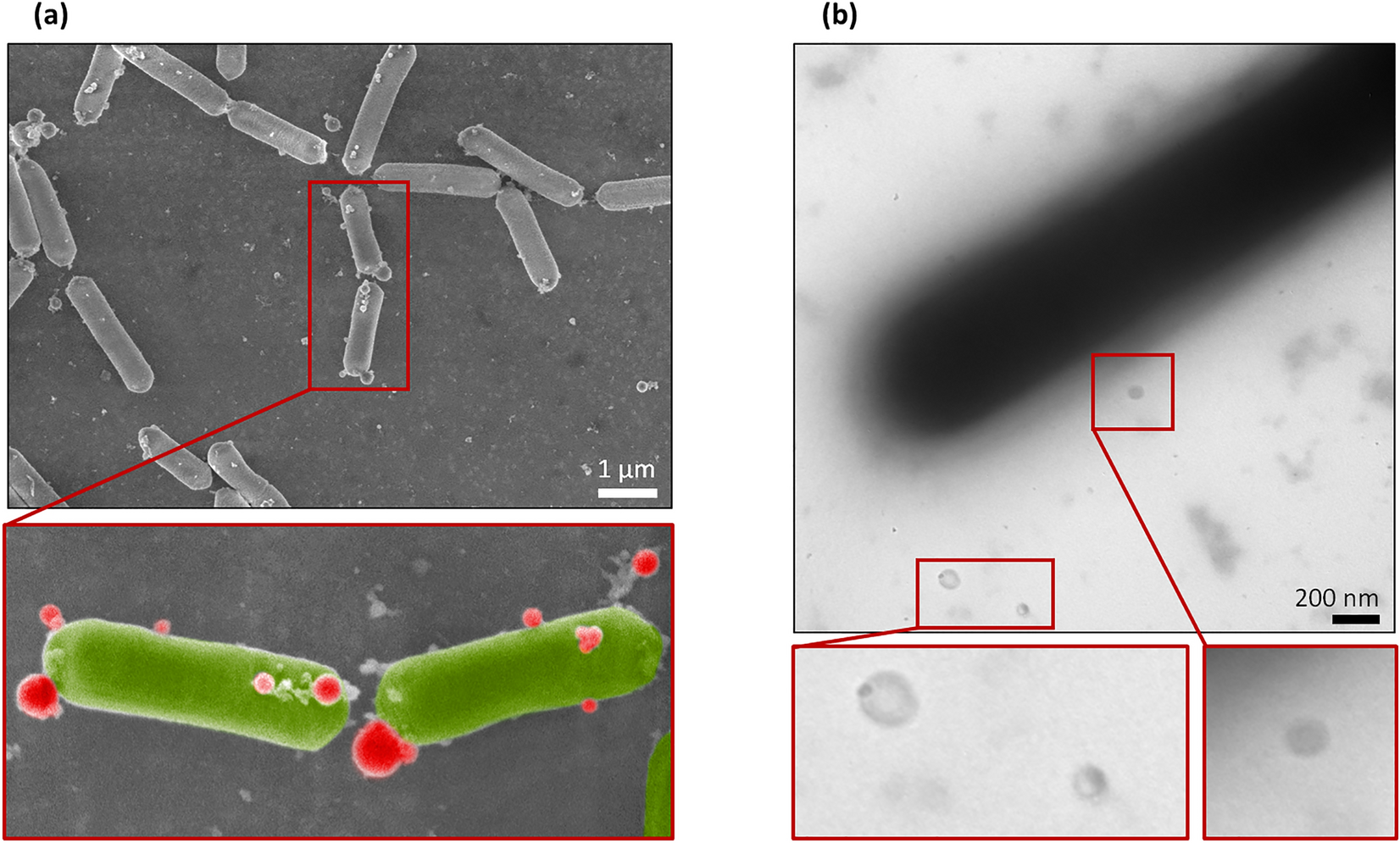

L. casei BL23 release membrane vesicles in the supernatant. SEM (a) and negative-staining TEM (b) images showing that MVs produced by L. casei BL23 are found on the surface of the bacteria and free in the supernatant. The bottom images show a magnified view of each EM images. MVs were colored in red and bacteria were colored in green in the SEM zoomed-in view for better identification.
