Figure 4

From: Strain accumulation and release associated with the occurrence of SSEs in the subduction zones of the Japanese Islands

Figure 4The alternative text for this image may have been generated using AI.

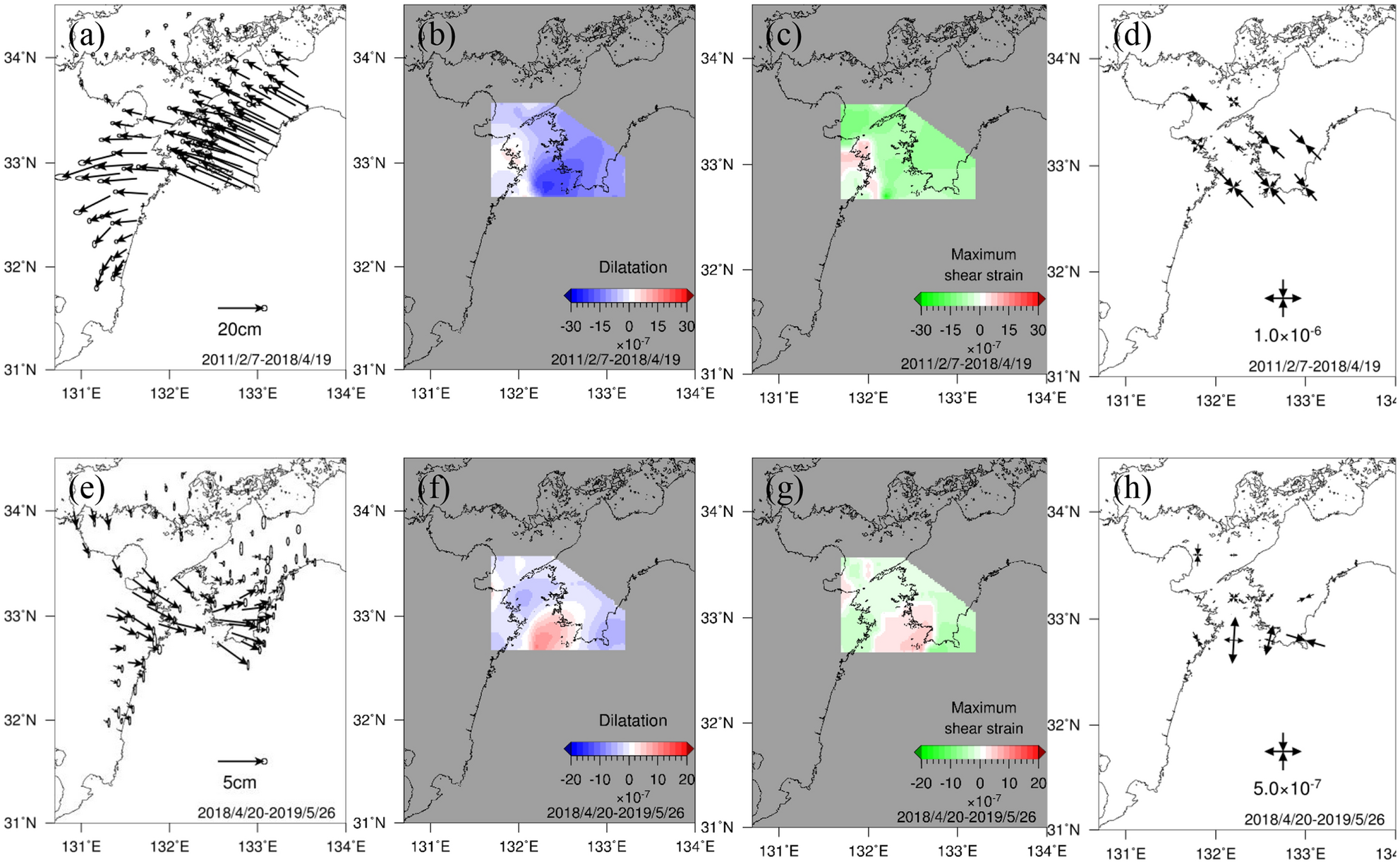

Spatial distributions of displacement, dilatation, maximum shear strain, and principal strain before (7 February 2011–19 April 2018) and during (20 April 2018–26 May 2019) the Bungo Channel L-SSE (2). The expressions of the figures are the same as those in Fig. 2a–h. The map was created by using the Generic Mapping Tools (GMT)27 (version: GMT3.4.6, URL link: https://www.generic-mapping-tools.org/download/).
