From: Strain accumulation and release associated with the occurrence of SSEs in the subduction zones of the Japanese Islands

Figure 6The alternative text for this image may have been generated using AI.

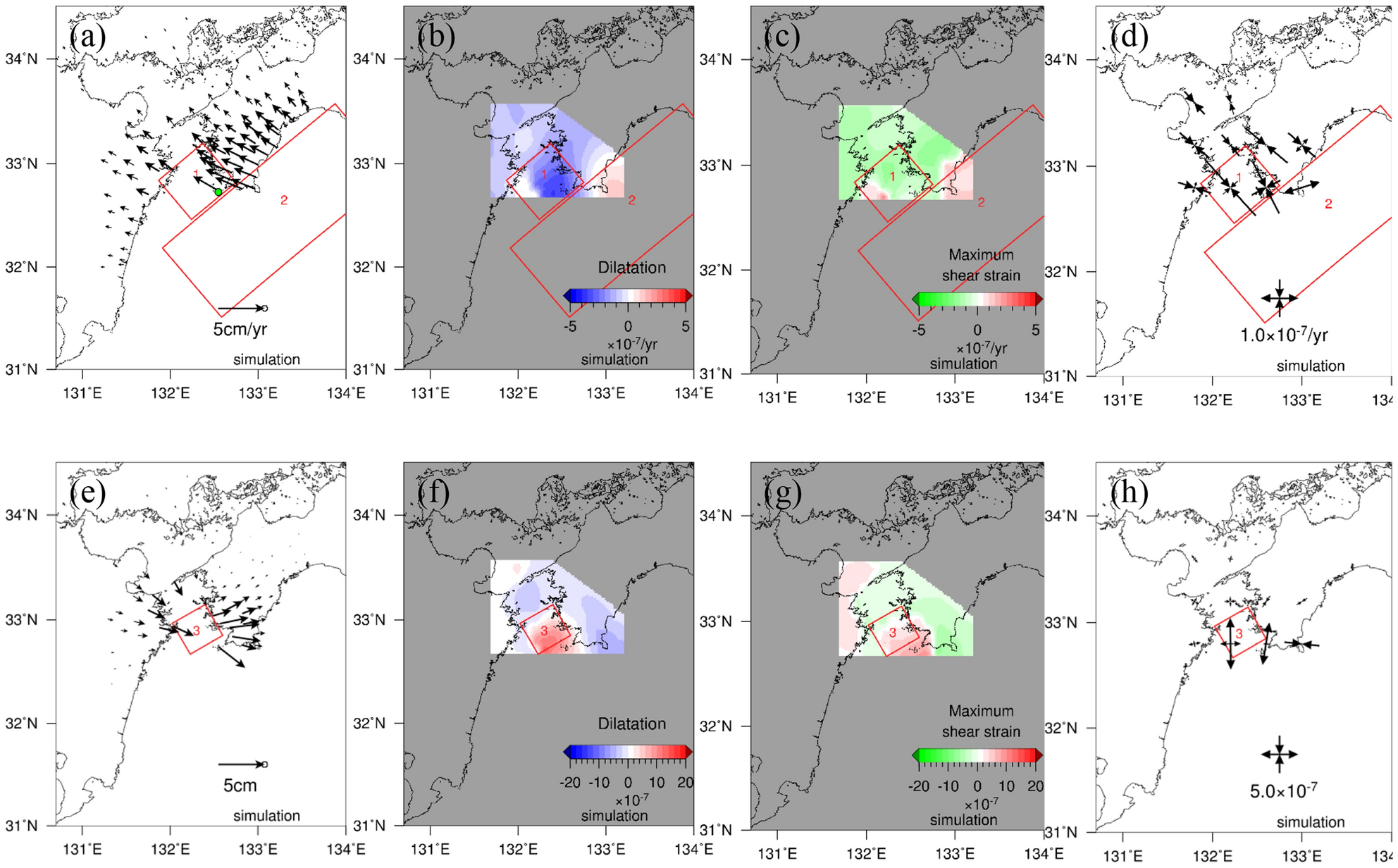

Displacement and various strain fields at the Earth’s surface calculated using the rectangular fault model beneath the Bungo Channel and its shallower plate interface. Red rectangles 1 to 3 represent the horizontal projections of the assumed fault planes (see Table 2). The green dot in (a) is the Sukumo station (021059), which is the closest to the Bungo Channel. The map was created by using the Generic Mapping Tools (GMT)27 (version: GMT3.4.6, URL link: https://www.generic-mapping-tools.org/download/).
