Figure 5
From: High-temperature operation of gallium oxide memristors up to 600 K

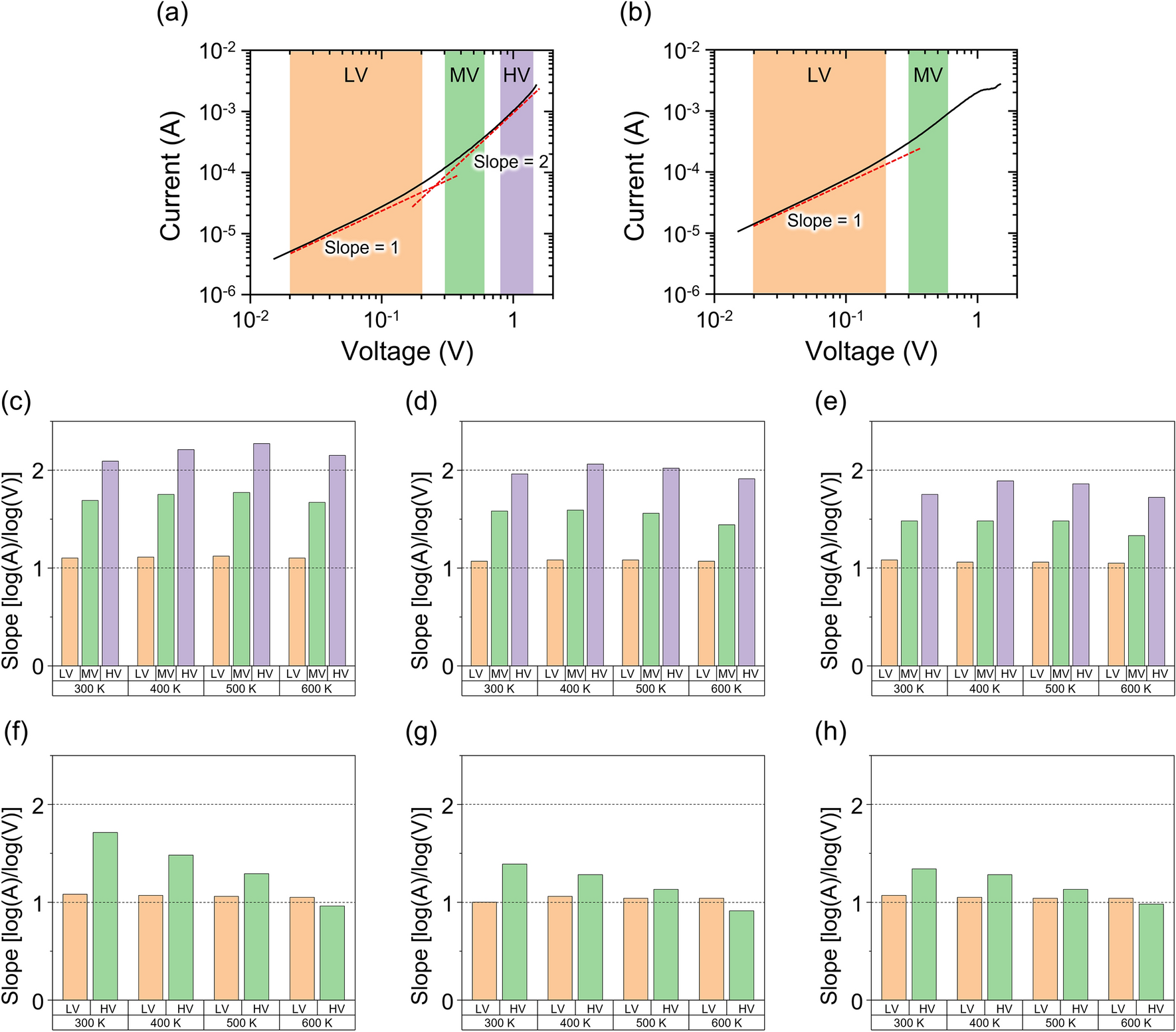

Double logarithmic I–V curves of sample G05 for (a) HRS and (b) LRS with eye-guiding lines for the slope = 1, 2 [log(A)/log(V)]. Values of the slope at HRS and LRS of Samples (c,f) G05, (d,g) G10, and (e,h) G15 at temperatures of 300–600 K.
