Figure 9 | Scientific Reports

Figure 9

From: A comprehensive deep learning method for empirical spectral prediction and its quantitative validation of nano-structured dimers

Figure 9

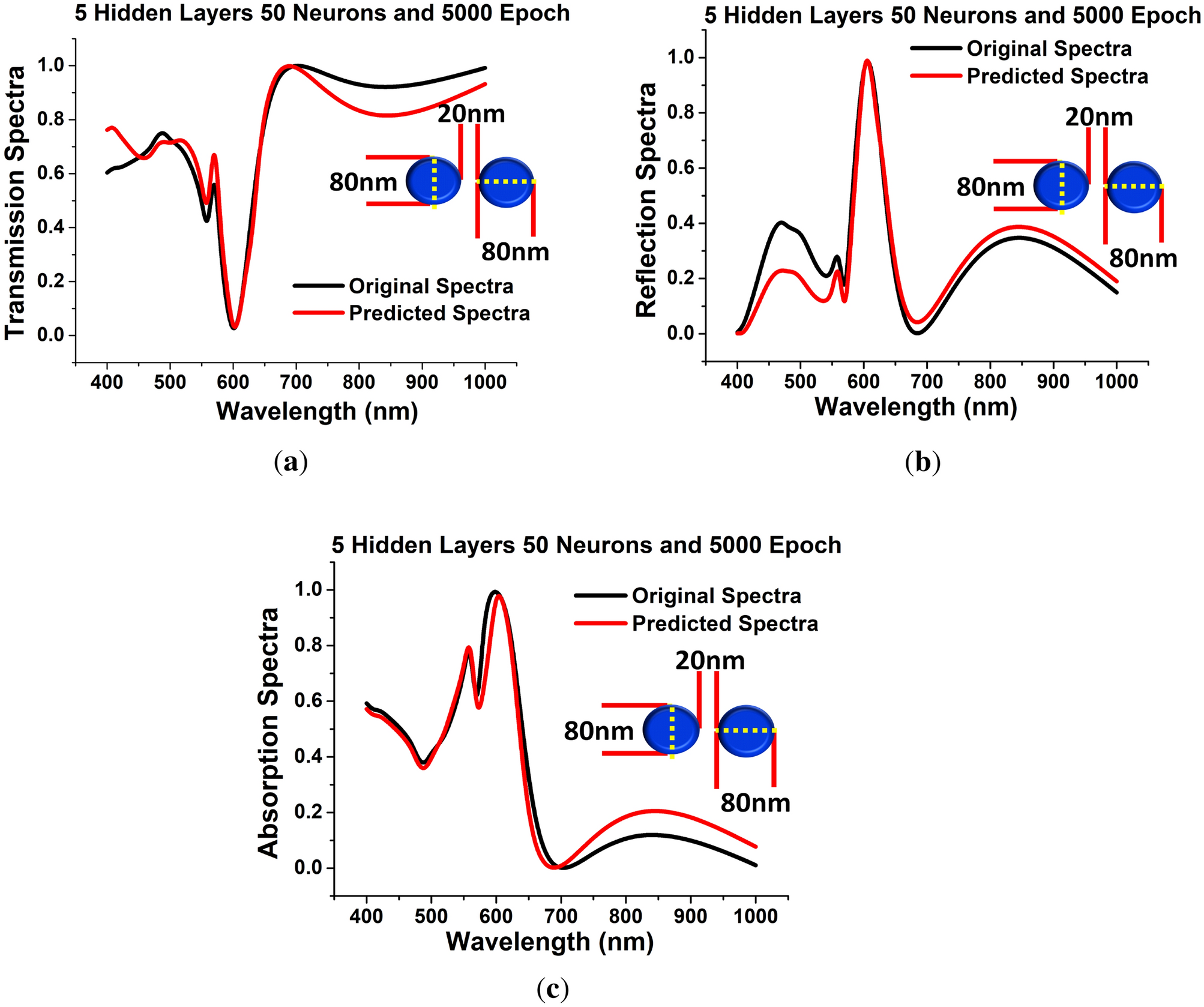

Hidden layer = 5, Neurons = 50 and Epoch = 5000 (a) Shows the comparison between the predicted transmission spectra with respect to the original transmission spectra of circular dimer with d = 80 nm, g = 20 nm and h = 40 nm. (b) Shows the anticipated reflection spectra are compared to the original reflection spectra. (c) Shows the predicted absorption spectra against the original absorption spectra of the same.
