Figure 2
From: IMU-based human activity recognition and payload classification for low-back exoskeletons

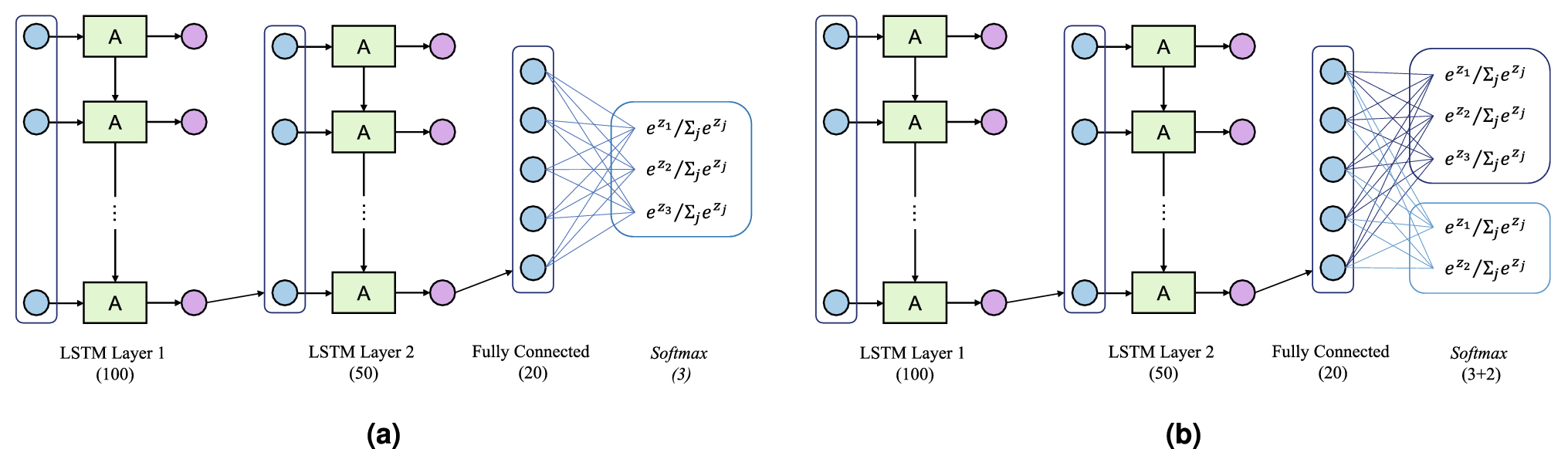

Network architecture featuring LSTM and fully-connected layers: (a) payload estimation and (b) multi-output network for HAR.
