Figure 3
From: IMU-based human activity recognition and payload classification for low-back exoskeletons

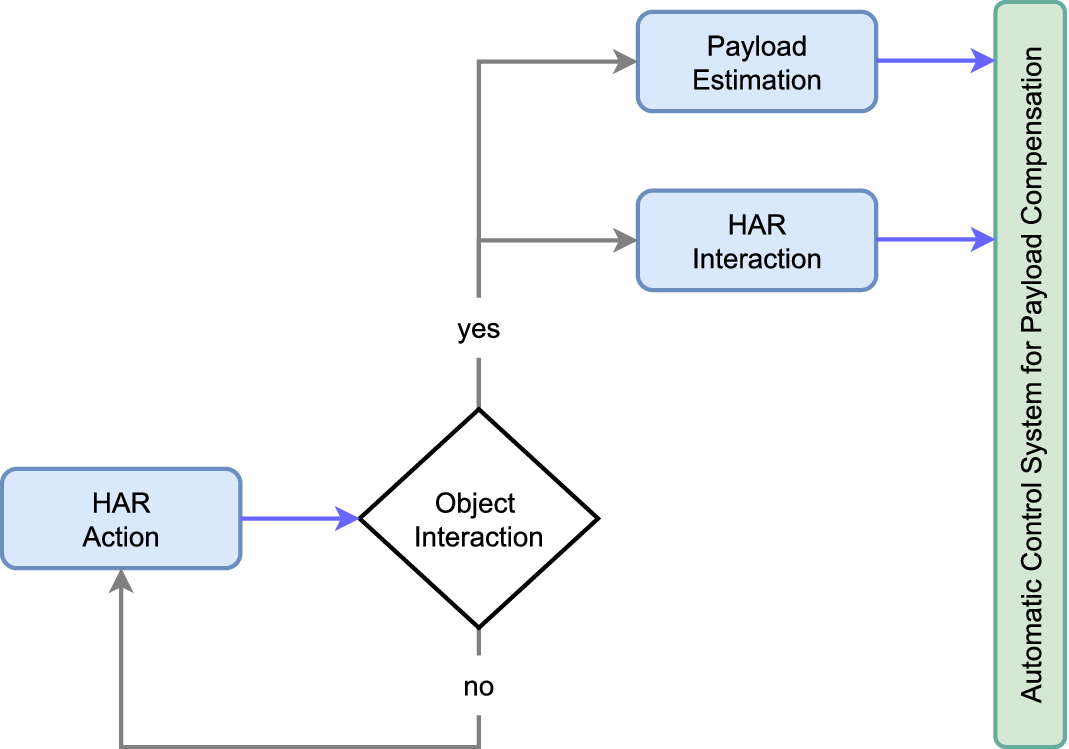

Flowchart of our deep learning models for exoskeleton control: interaction type (HAR) and payload estimation are triggered only when the predicted action (HAR) is equal to object interaction. In the figure, blue arrows represent model predictions, grey arrows represent flow actions.
