From: The effects of spin-orbit coupling on optical properties of monolayer \(\text {MoS}_{2}\) due to mechanical strains

Figure 1

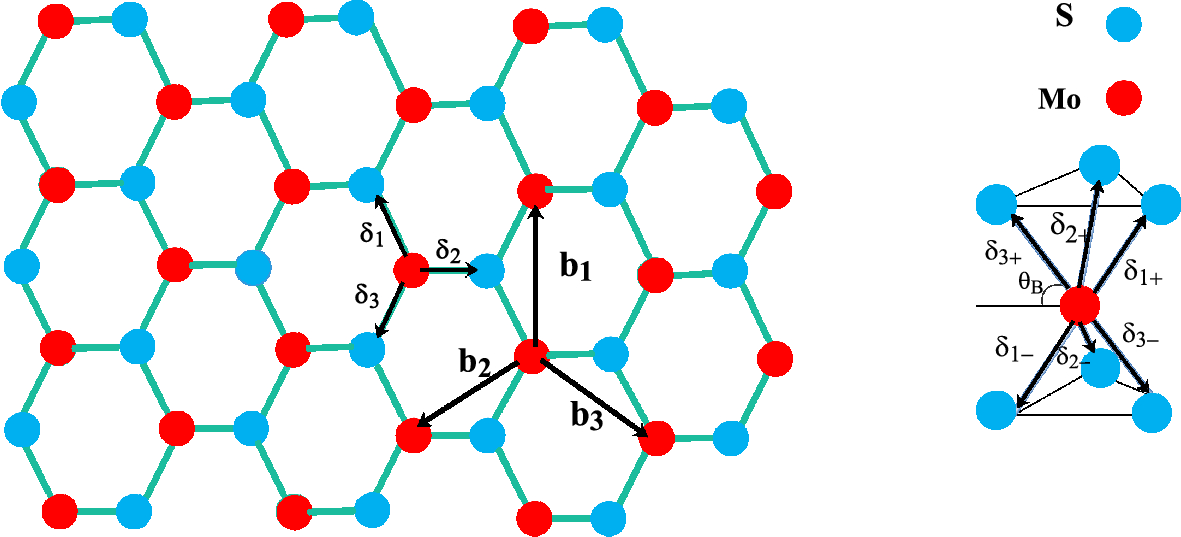

Left panel: A top view schematic of single layer \(\text {MoS}_{2}\) lattice structure. Blue(red) circles indicate Mo(S) atoms. \(\textbf{b}_{i=1,2,3}\) show the vectors connecting next nearest neighbor lattice sites while \(\delta _{i=1,2,3}\) show vectors connecting nearest neighbor lattice sites. Right panel: Side view of the lattice structure are seen where Mo atom is surrounded by six S atoms.
