Figure 3
From: Revisiting self-interference in Young’s double-slit experiments

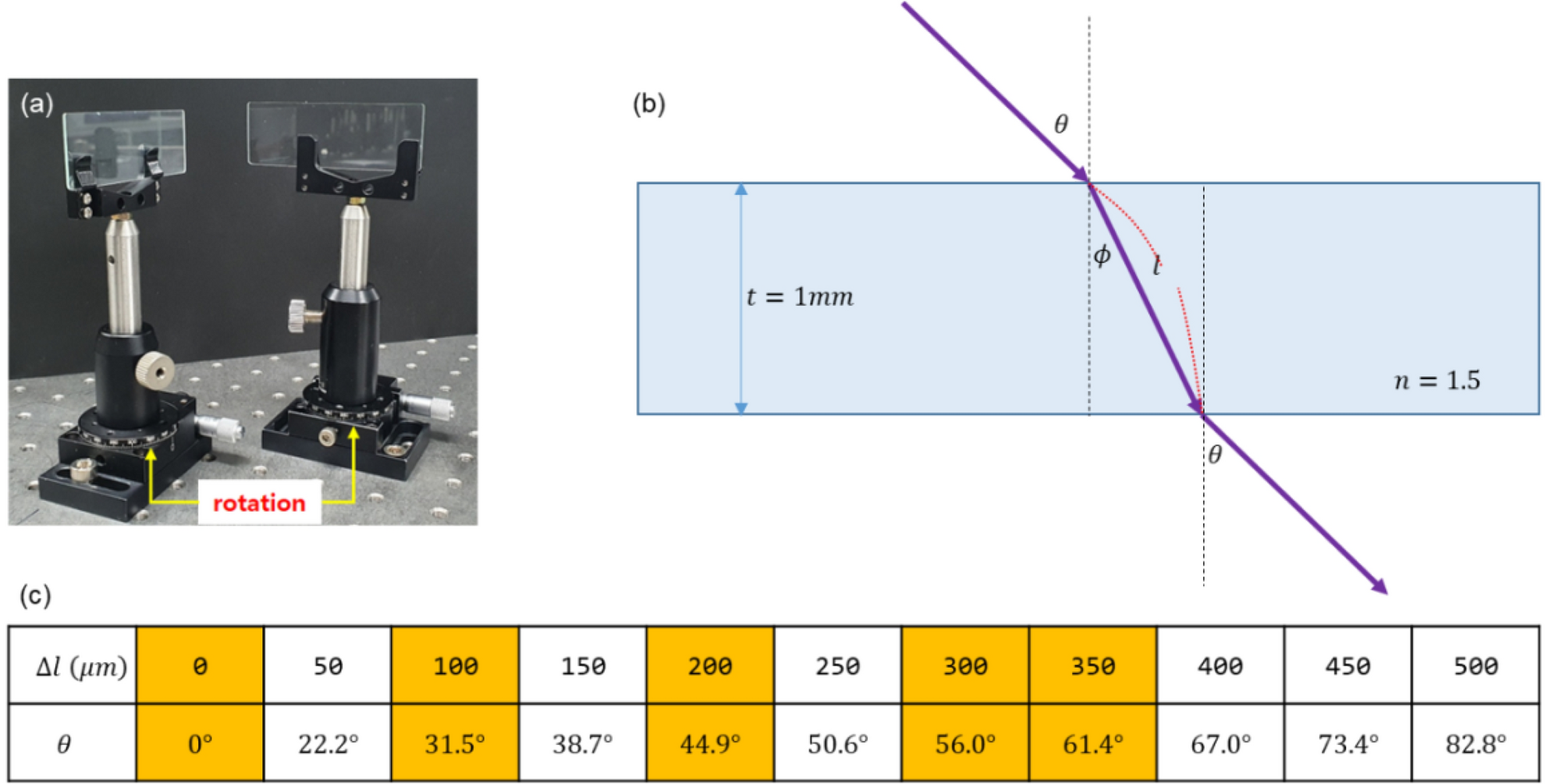

MZI path length control. (a) Samples of the glass plate pair inserted in the MZI paths of Fig. 1. (b) A cross section of the glass plate and rotation angle \(\uptheta\) with respect to the normal direction. (c) The rotation angle related lengths.
