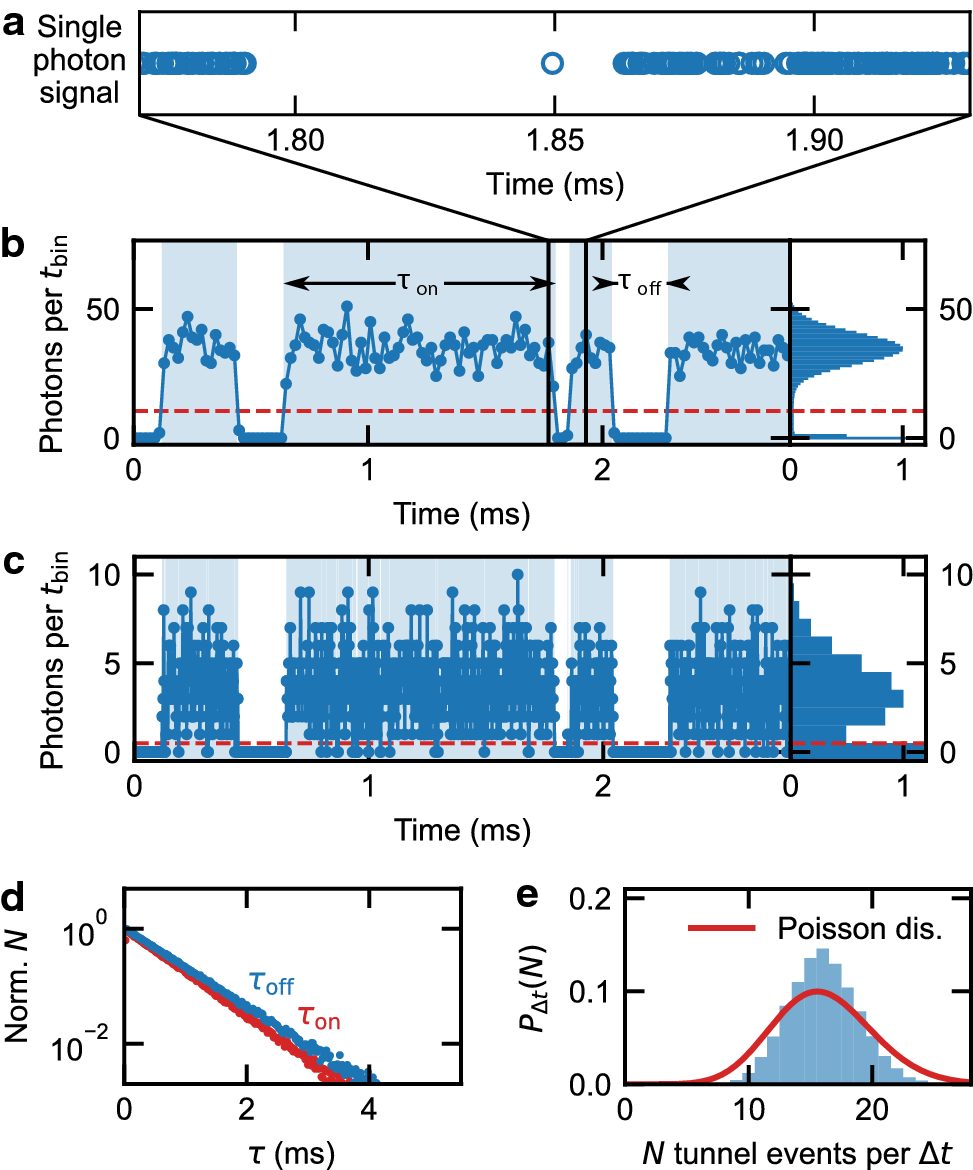

Figure 2
From: Post-processing of real-time quantum event measurements for an optimal bandwidth
Evaluation scheme of the random telegraph signal (RTS). (a) Single photon stream from the resonant excitation of the exciton transition, recorded for about 5 min (b,c) Binned photon counts per \(t_{\textrm{bin}}\) (left panel) and corresponding histogram (right panel) for two binning times \(t_{\textrm{bin}}\) (b \(t_{\textrm{bin}}=20\,\upmu \hbox {s}\); c \(t_{\textrm{bin}}=2\,\upmu \hbox {s}\)). The charge state of the dot is determined by applying a threshold photon number (dashed red line). (d) The waiting-time distribution is evaluated by the length and frequency of the time periods of the on (\(\tau _{\textrm{on}}\)) and off state (\(\tau _{\textrm{off}}\)), respectively. (e) The full-counting statistics of the data in Fig. 2b, i.e. the probability to find N tunnel events in a given time period \(\Delta t=20\) ms.
