Figure 5
From: Y-type hexagonal ferrite-based band-pass filter with dual magnetic and electric field tunability

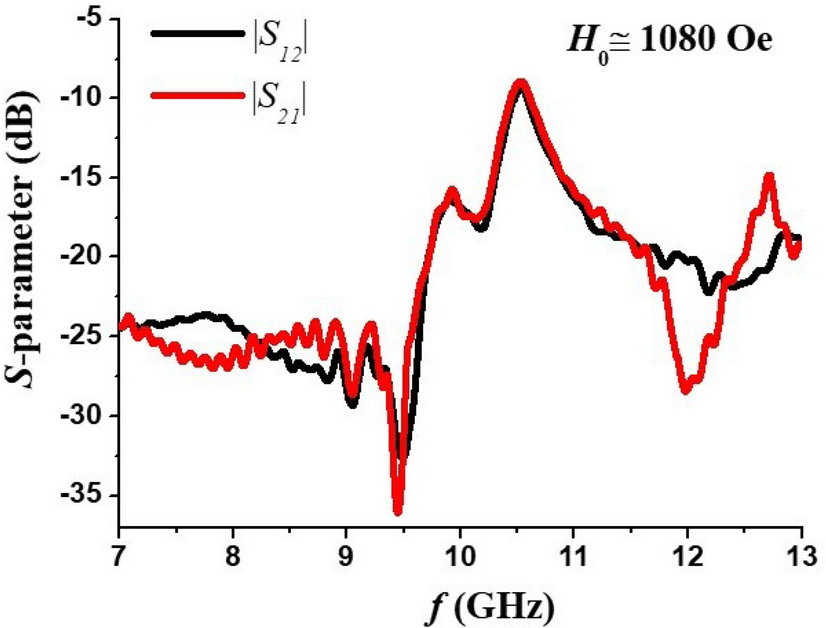

Profiles of transmission characteristics showing nonreciprocity for the filter. H0 value was extracted from data in Fig. 4.
