Figure 8
From: Y-type hexagonal ferrite-based band-pass filter with dual magnetic and electric field tunability

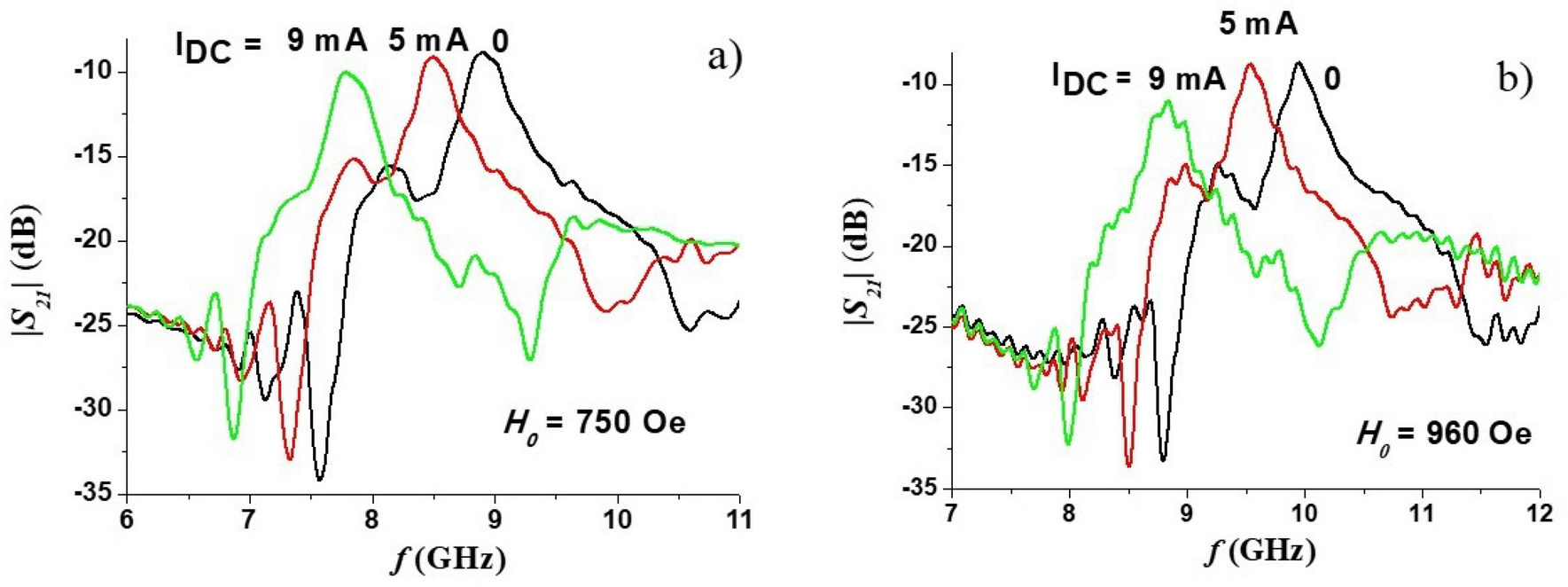

Pass-band electrical tuning characteristics of the band pass filter by applied DC current for (a) H0 = 750 Oe and (b) H0 = 960.
