Figure 2

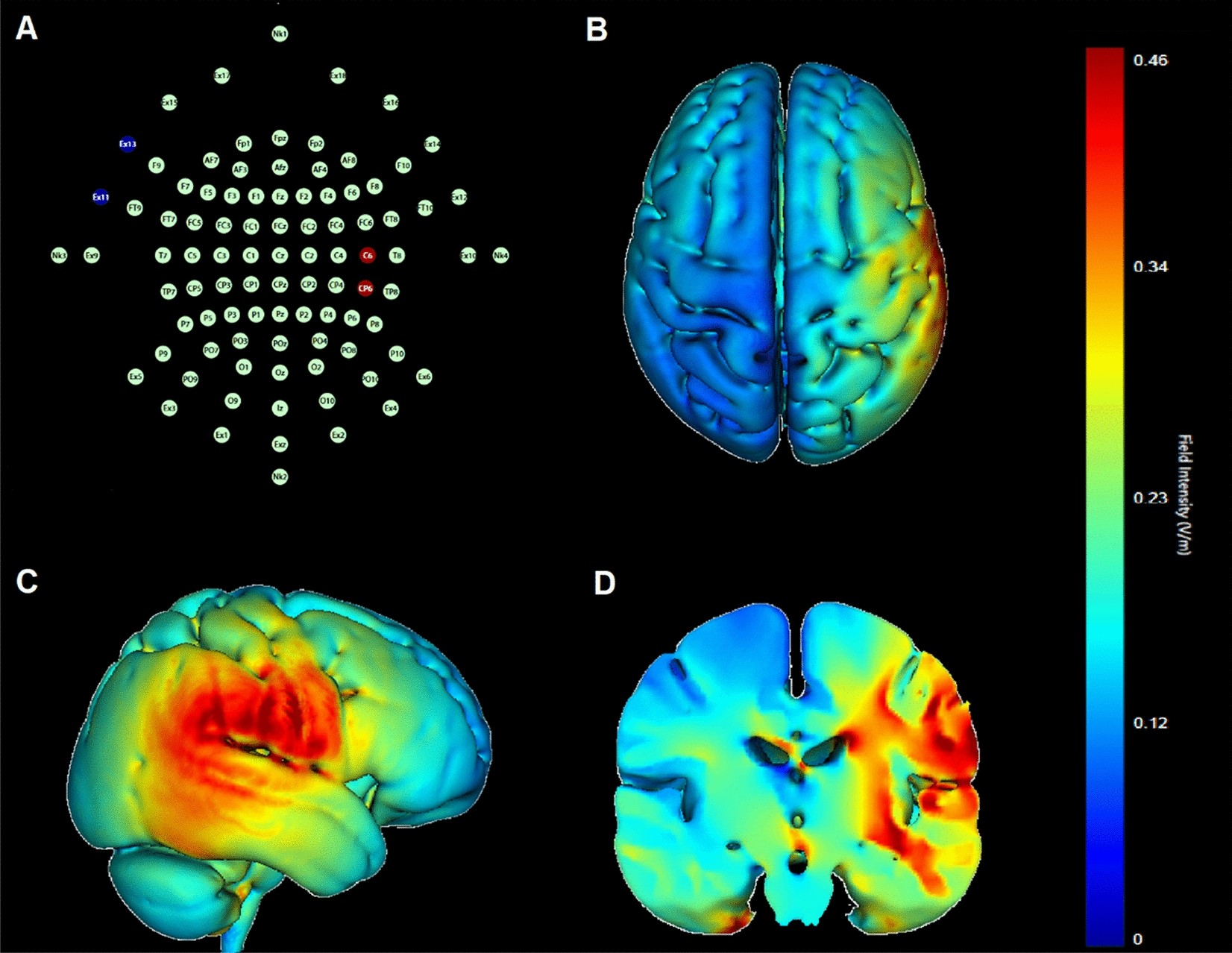

(A) An illustration of the stimulating electrodes positions based on the international 10–20 EEG system. (B–D) Simulation of the normalized electric field distribution in the brain: (B) superior view, (C) lateral view, (D) coronal view.

(A) An illustration of the stimulating electrodes positions based on the international 10–20 EEG system. (B–D) Simulation of the normalized electric field distribution in the brain: (B) superior view, (C) lateral view, (D) coronal view.
