Figure 2
From: Design and experiment of a combined peeling machine for water chestnut

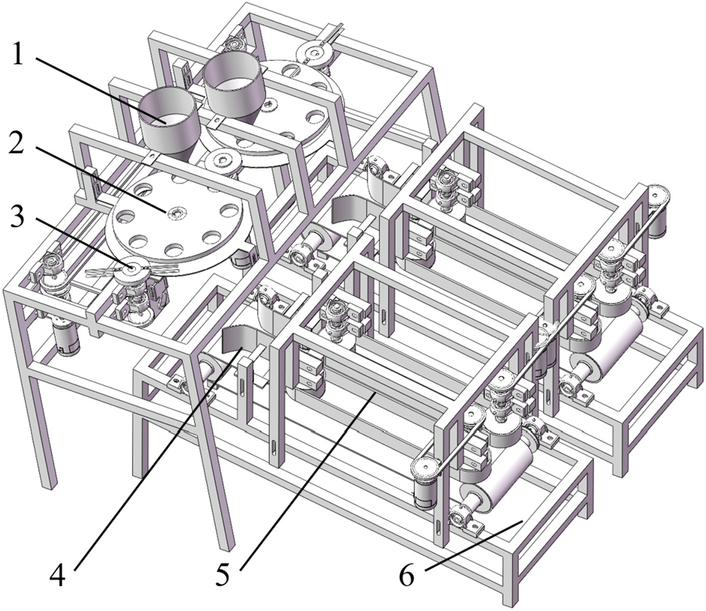

Three-dimensional structure of combined water chestnut peeling machine; (1) Blanking mechanism; (2) Positioning mechanism; (3) Cutting mechanism; (4) Transmission mechanism; (5) Friction mechanism; (6) Discharge mechanism.
