Figure 4
From: Design and experiment of a combined peeling machine for water chestnut

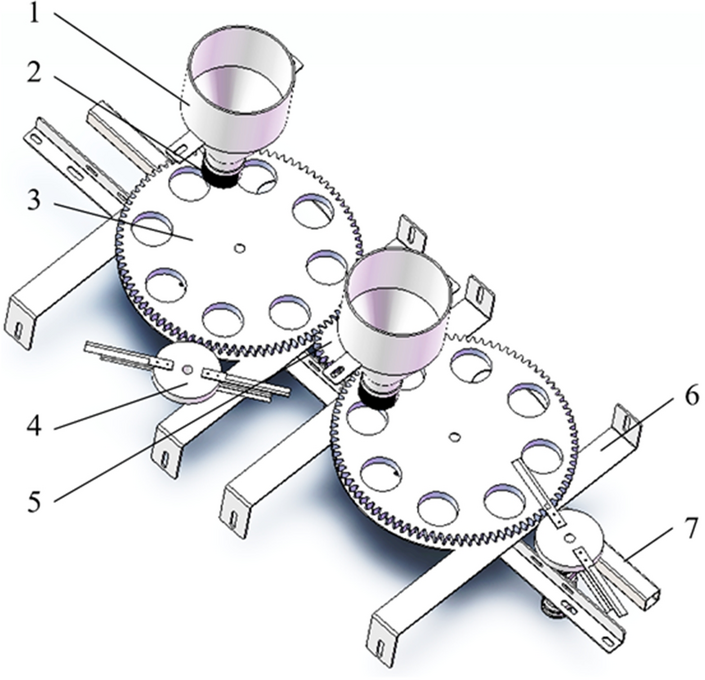

Blanking mechanism (1) Blanking hopper; (2) Brush; (3) Positioning disk; (4) Rotary knife; (5) Driving gear; (6) Supporting plate; (7) Supporting beam.
