Figure 2

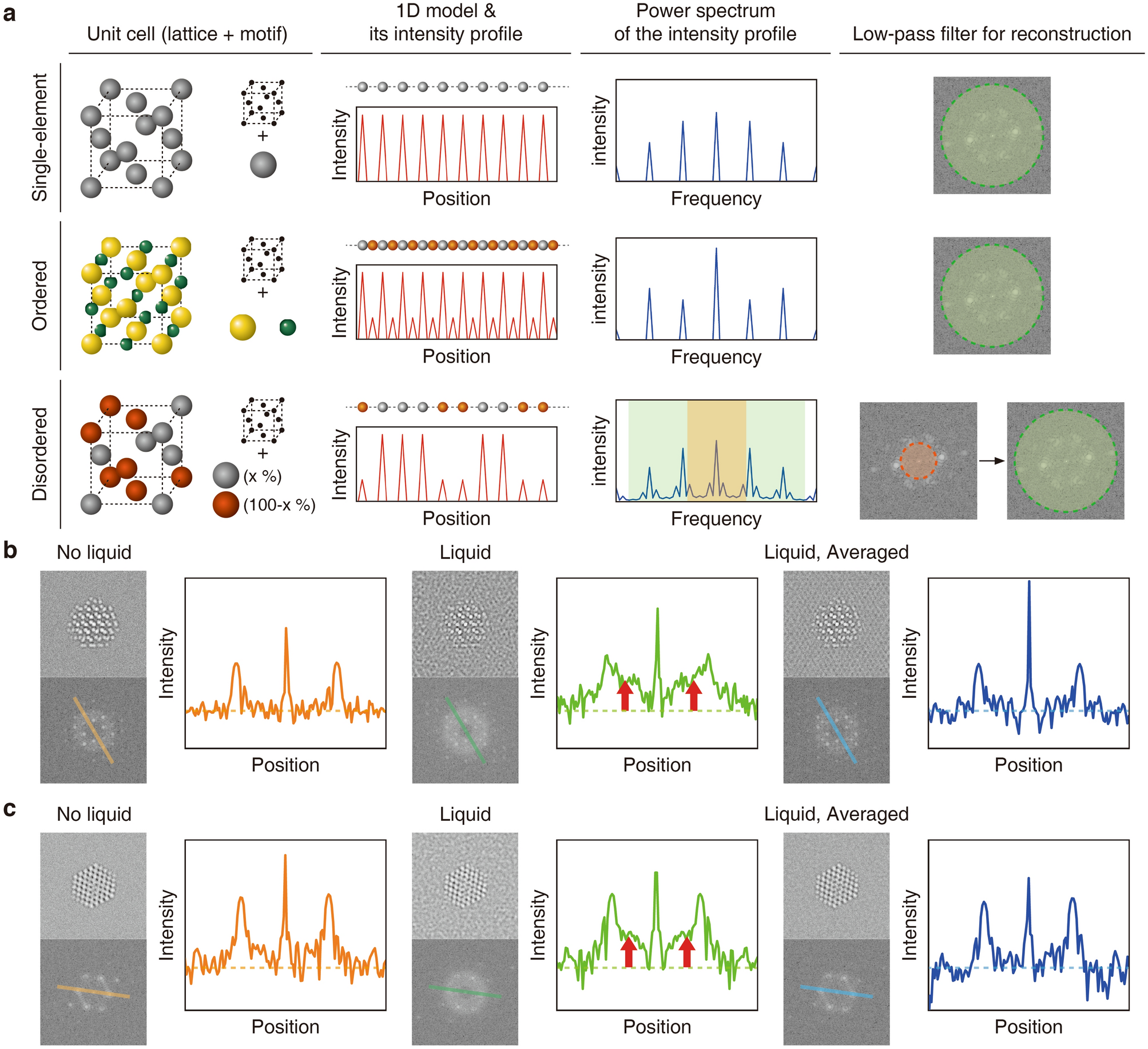

(a) Unit cell structures, 1D models and their intensity profiles, power spectrum of 1D modeled intensity profiles, and different low-pass limitation strategies for single-element, ordered multi-element, and disordered multi-element systems. (b–c) Simulated TEM images of multi-element nanoparticles, their 2D power spectra, and corresponding line profiles for nanoparticles without liquid (left, orange), with liquid (medium, green), and with liquid and averaging (right, blue). The line profiles are extracted from marked lines on the 2D power spectrum images. (b) ordered multi-element nanoparticles (zinc blende CdSe), (c): disordered multi-element nanoparticles (disordered fcc FePt).
