Figure 2

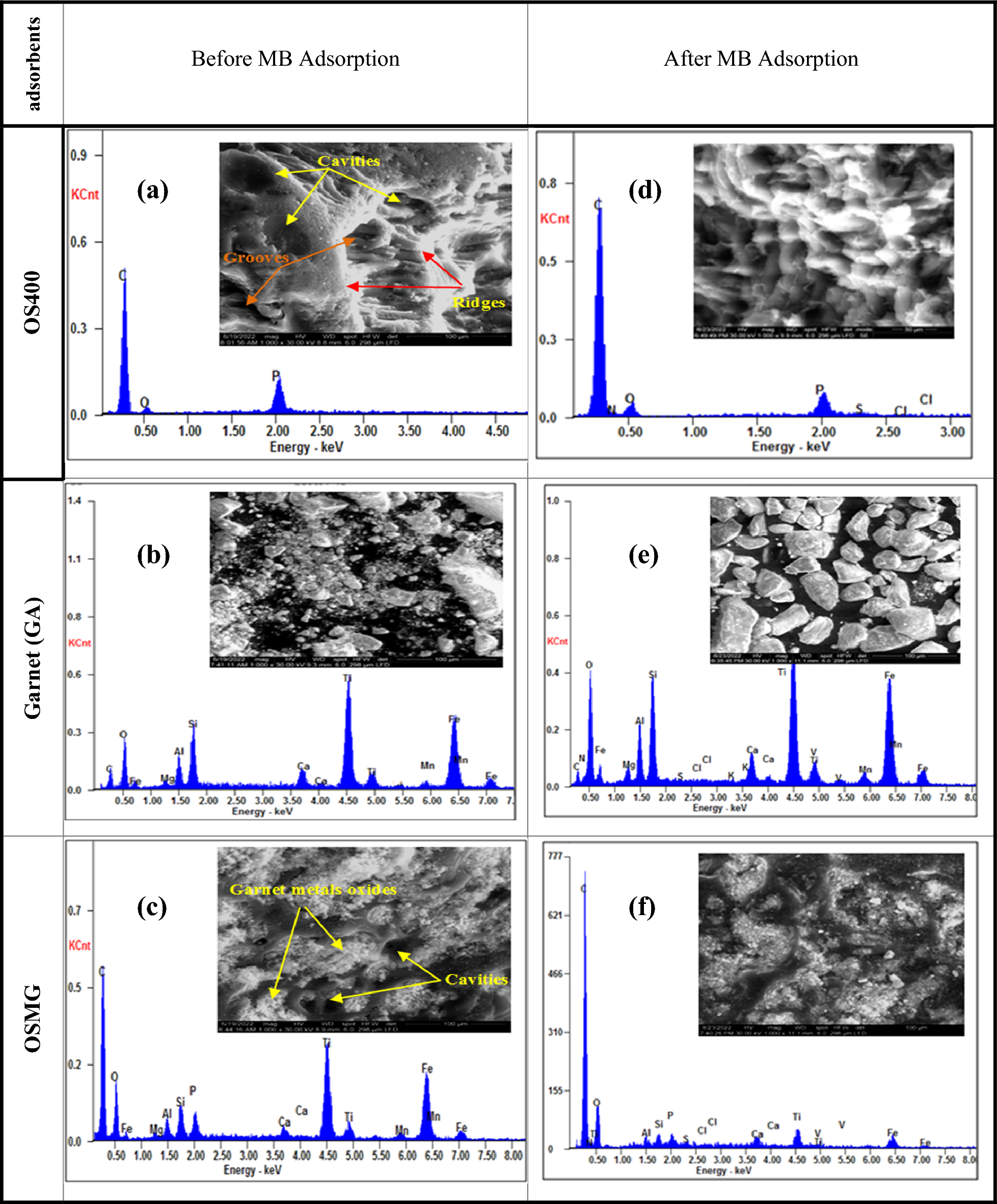

SEM images and EDX profiles for the adsorbents samples before (a, b and c), and after (d, e and f) the adsorption process of the MB dye.
Figure 2 | Scientific Reports
SEM images and EDX profiles for the adsorbents samples before (a, b and c), and after (d, e and f) the adsorption process of the MB dye.
