Figure 11

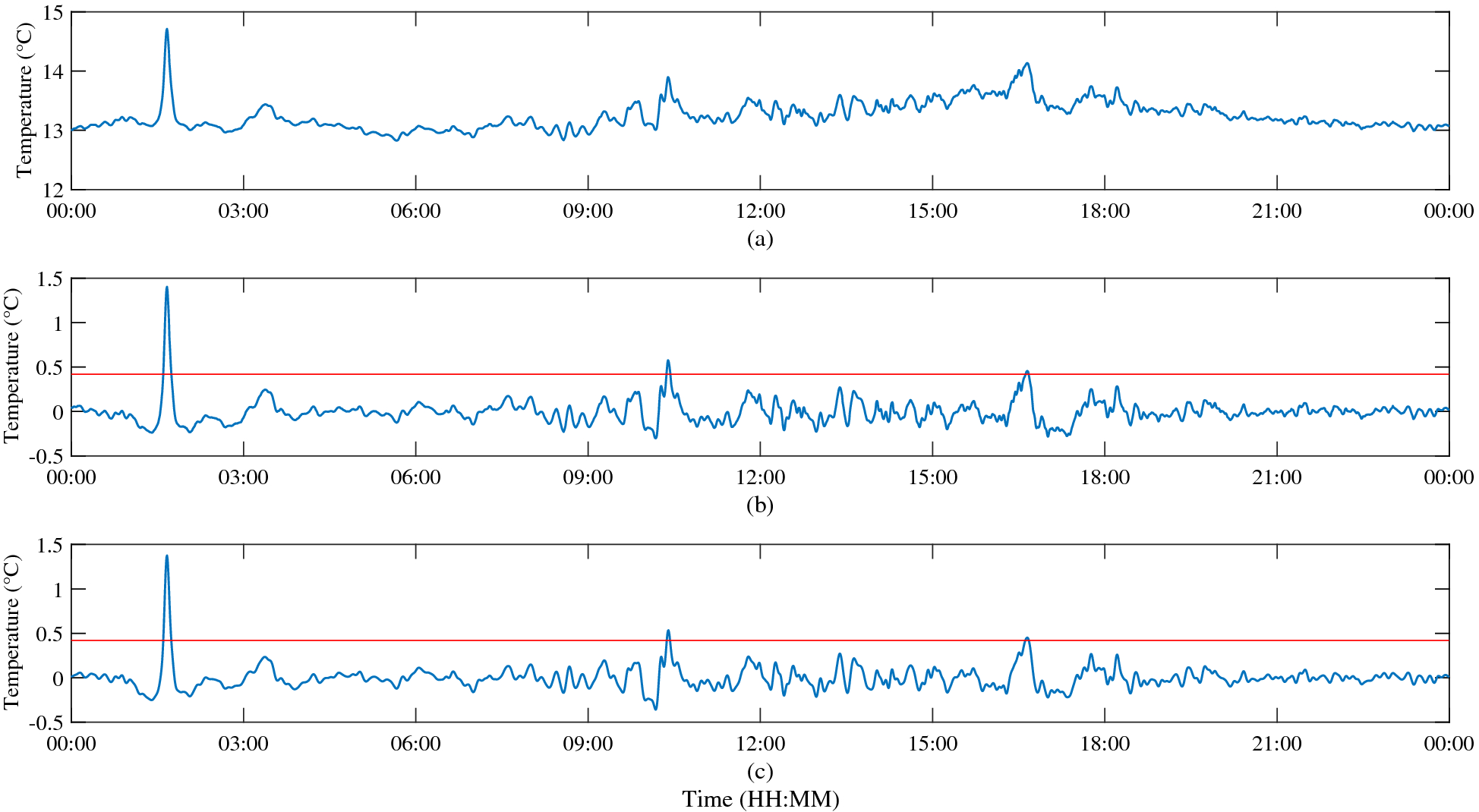

Schematic of identification of ISWs by TS method. (a) The depth-averaged temperature in the whole water column. (b) Sum of the first five IMFs of EEMD. (c) Sum of filtered depth-averaged temperature, the red lines are the index lines with a value of 0.42.
