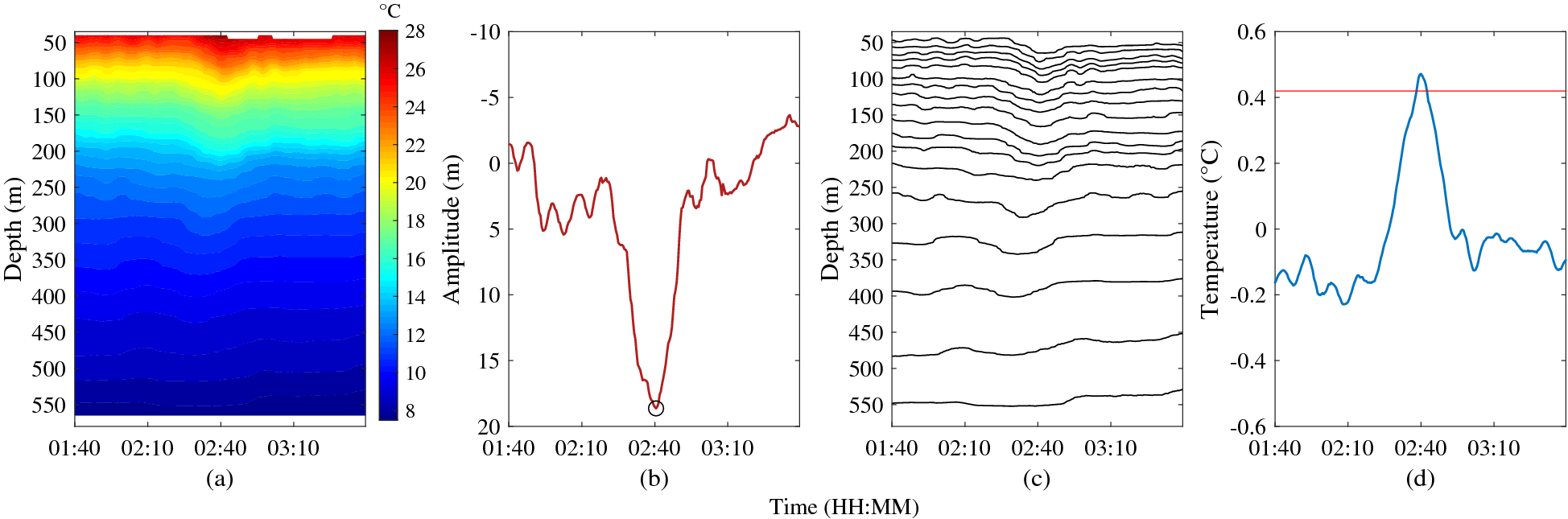

A case of identifying an ISW with an amplitude more than 20 m. (a) Spatio-temporal distribution of temperature on August 26, 2018. (b) ISW identified by SI method, the downward spike-like fluctuation (small black circle) is same as Fig. 4. (c) ISW identified by WCI method. (d) ISW identified by TS method, the red line is the identification index with a value of 0.42 corresponding to 20 m amplitude.
