Figure 2

From: Reduced glucosinolate content in oilseed rape (Brassica napus L.) by random mutagenesis of BnMYB28 and BnCYP79F1 genes

Figure 2

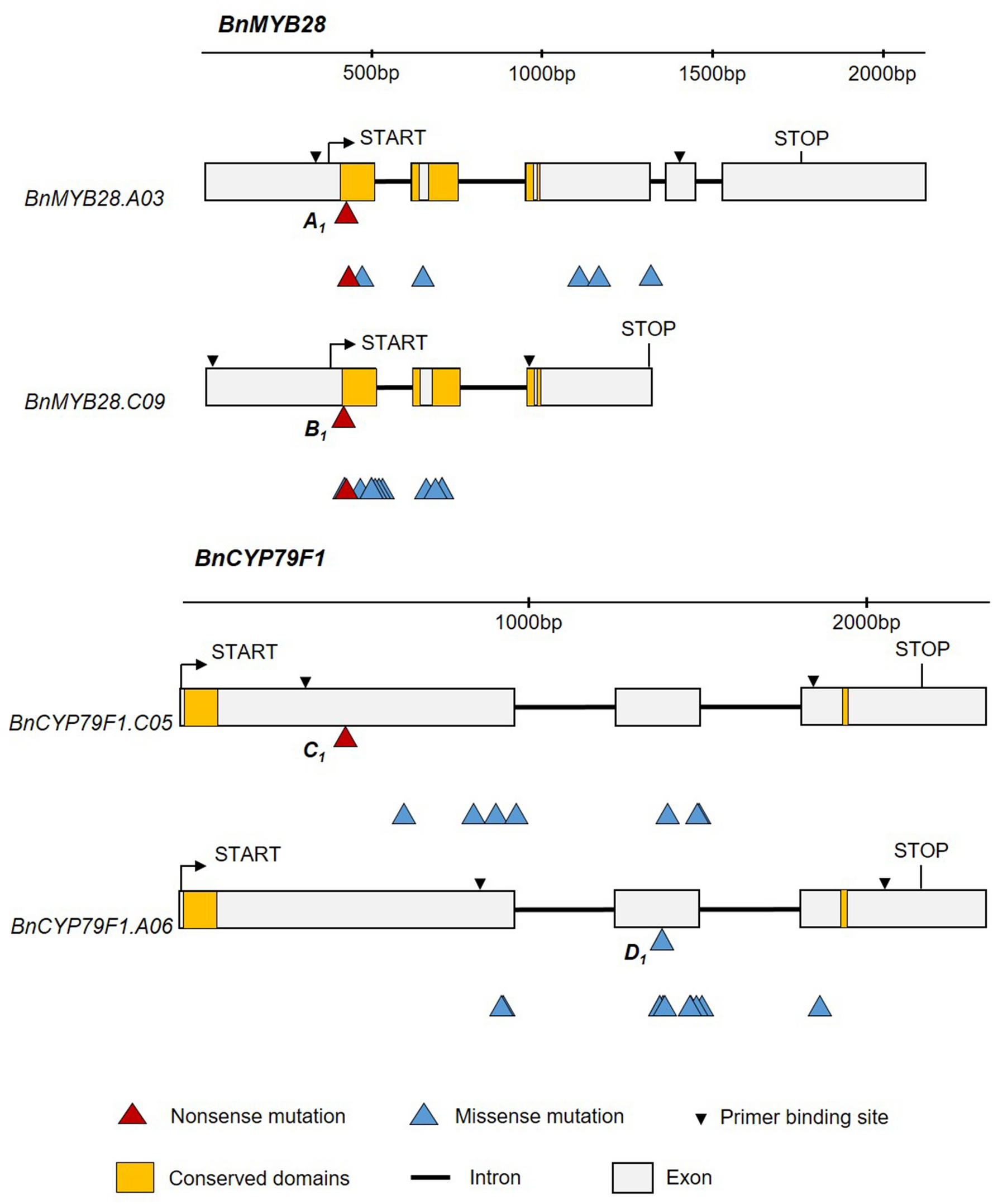

Structure of four BnMYB28 and BnCYP79F1 genes and positions of EMS-induced nonsense and missense mutations. Allele identities are given next to the mutation site for those mutations used for further studies (refer to Table 2 for all allele codes). Regions coding for functional and conserved domains characteristic to the gene families are marked in orange boxes. START and STOP represent the translation start and stop sites, respectively. For BnCYP79F1, the 5ʹ untranslated regions are not defined on the Darmor-bzh reference genome.
