Figure 4

From: Self-association of the glycopeptide antibiotic teicoplanin A2 in aqueous solution studied by molecular hydrodynamics

Figure 4

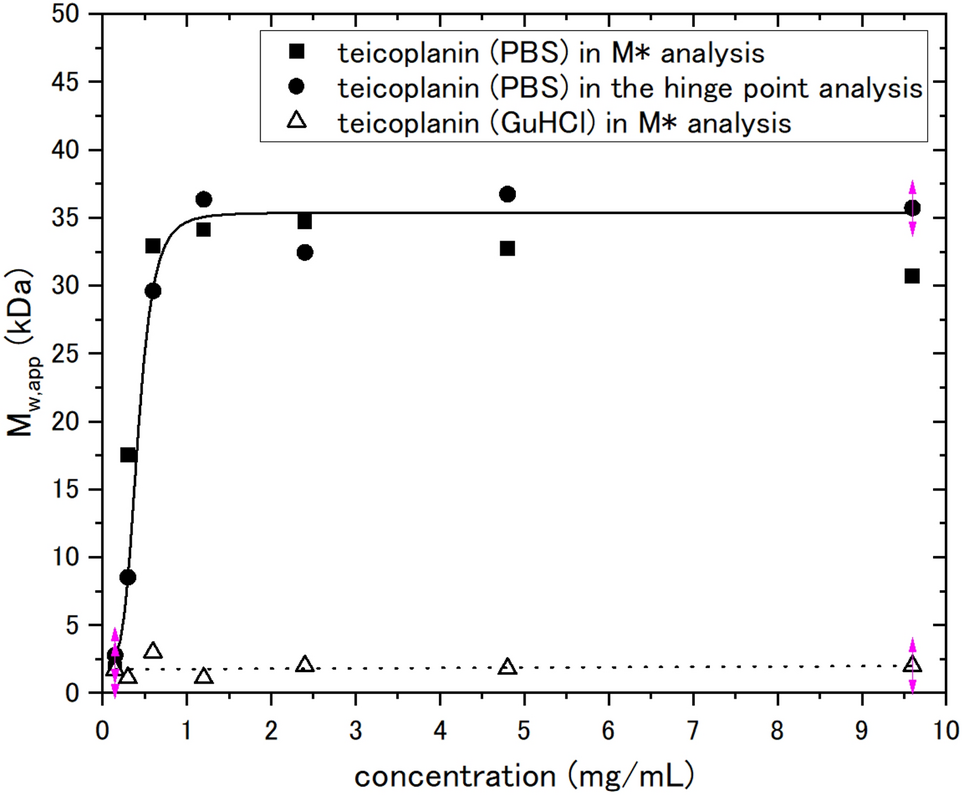

Change of weight average molar mass Mw of teicoplanin with loading concentration derived from sedimentation equilibrium analysed by SEDFIT–MSTAR. Solid square symbols are molar masses Mw,app obtained from the M* method. Solid round symbols are molar masses Mw,app obtained from the hinge point method. Solid line is a standard French curve fit to the data. Open triangle symbols are molar masses Mw,app of teicoplanin dissolved in 6 M GuHCl from the M* method.
