Figure 5

From: Fabrication of silver nanoparticles-deposited fabrics as a potential candidate for the development of reusable facemasks and evaluation of their performance

Figure 5

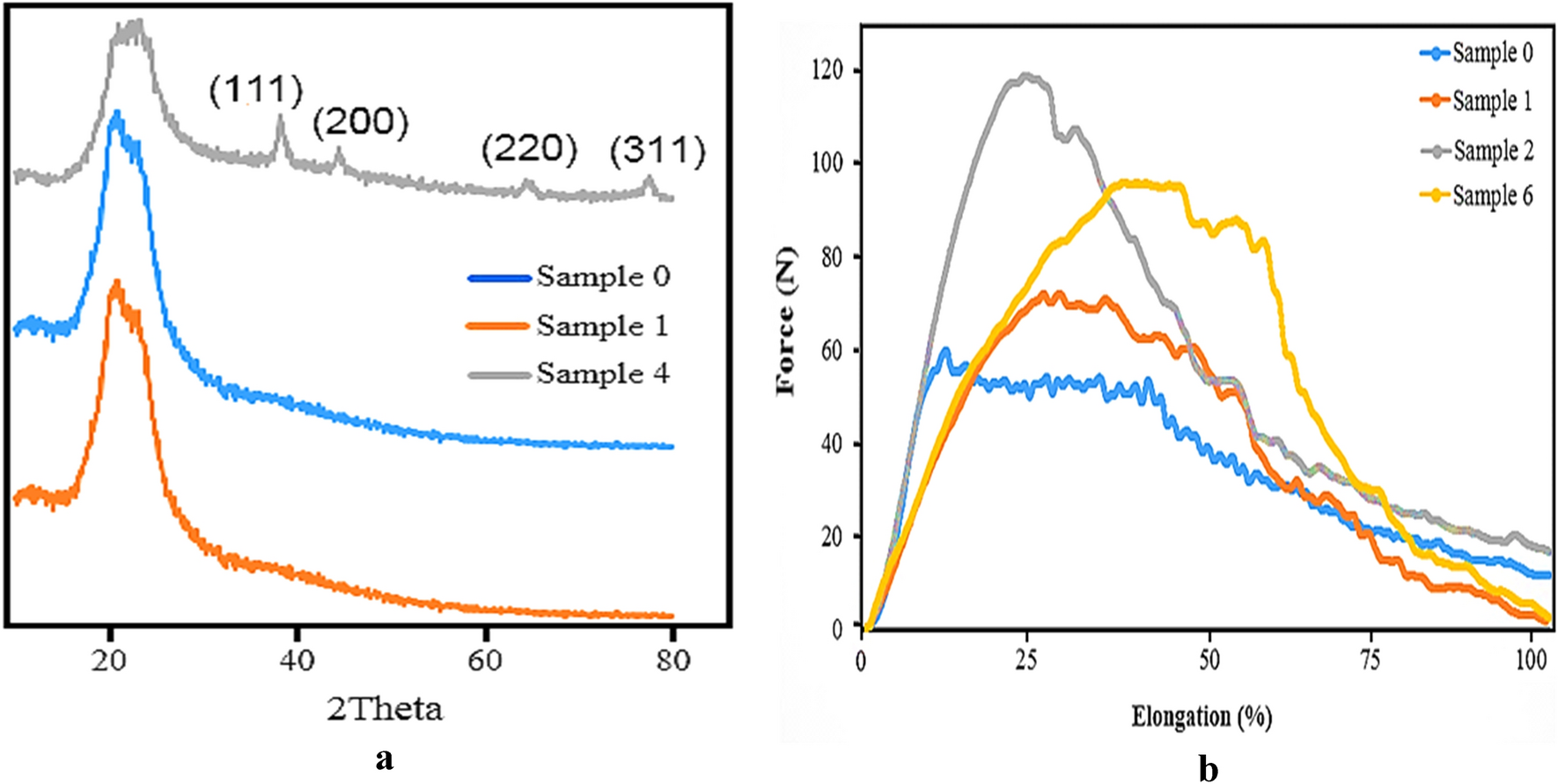

XRD patterns (a) and mechanical properties (b) of the uncoated and coated fabrics. Sample 0 (Uncoated fabric), Samples 1, 2, 4 (NS-coated fabrics at 2, 10, and 50 mM silver nitrate concentrations, and 25 min sonication time, respectively), Sample 6 (NS-coated fabrics at 10 mM silver nitrate concentration and 50 min sonication time).
