Figure 7

From: Fabrication of silver nanoparticles-deposited fabrics as a potential candidate for the development of reusable facemasks and evaluation of their performance

Figure 7

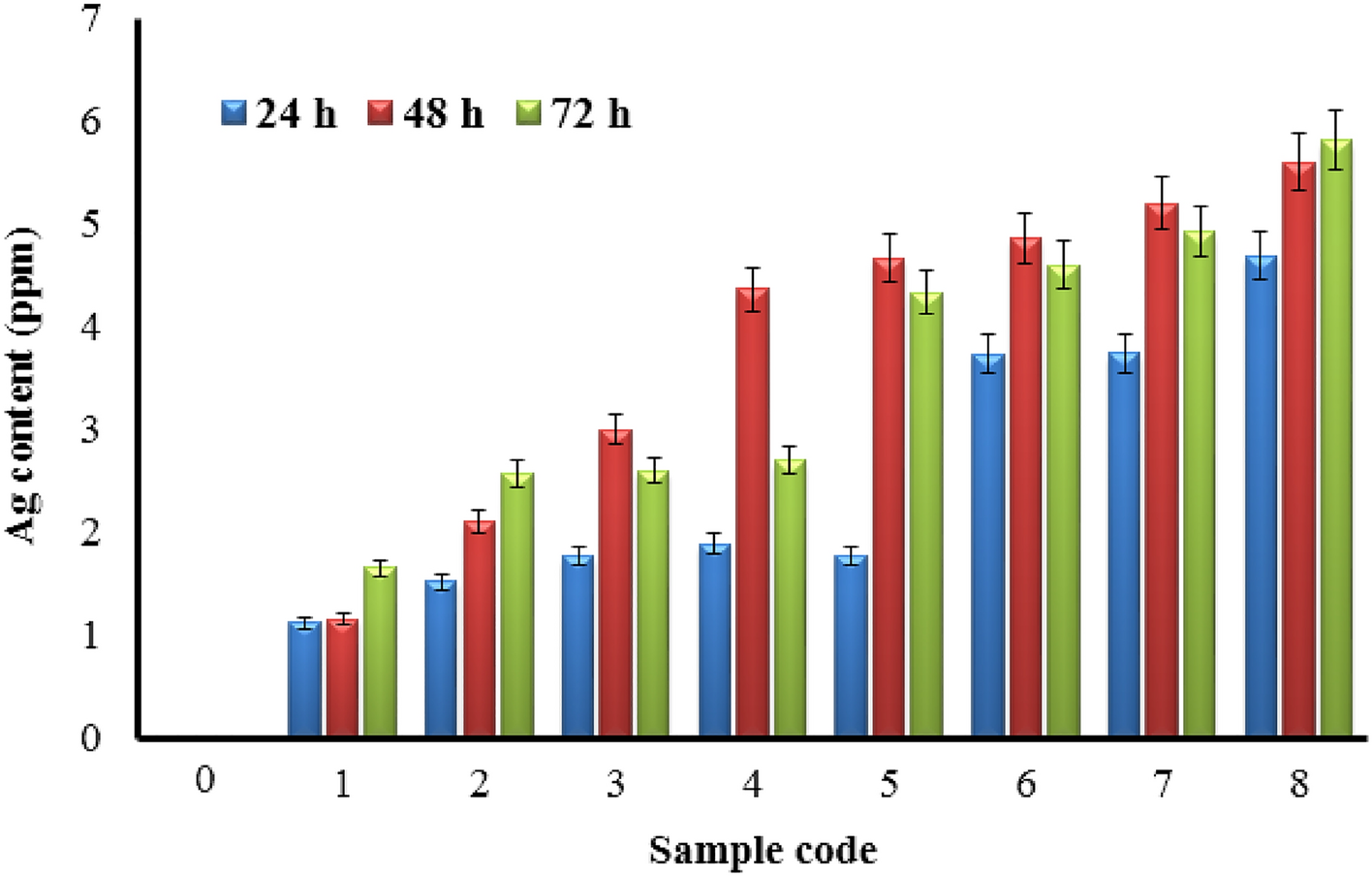

In vitro release of deposited SNPs from coated (Samples 1–8) fabrics. Uncoated fabric (Sample 0) included as blank in the experiment. Sample 0 (Uncoated fabric), Samples 1–4 and 5–8 (NS-coated fabrics at 2, 10, 20, and 50 mM silver nitrate concentrations, and 25 and 50 min sonication time, respectively).
