From: Transmutation of MAs and LLFPs with a lead-cooled fast reactor

Figure 2

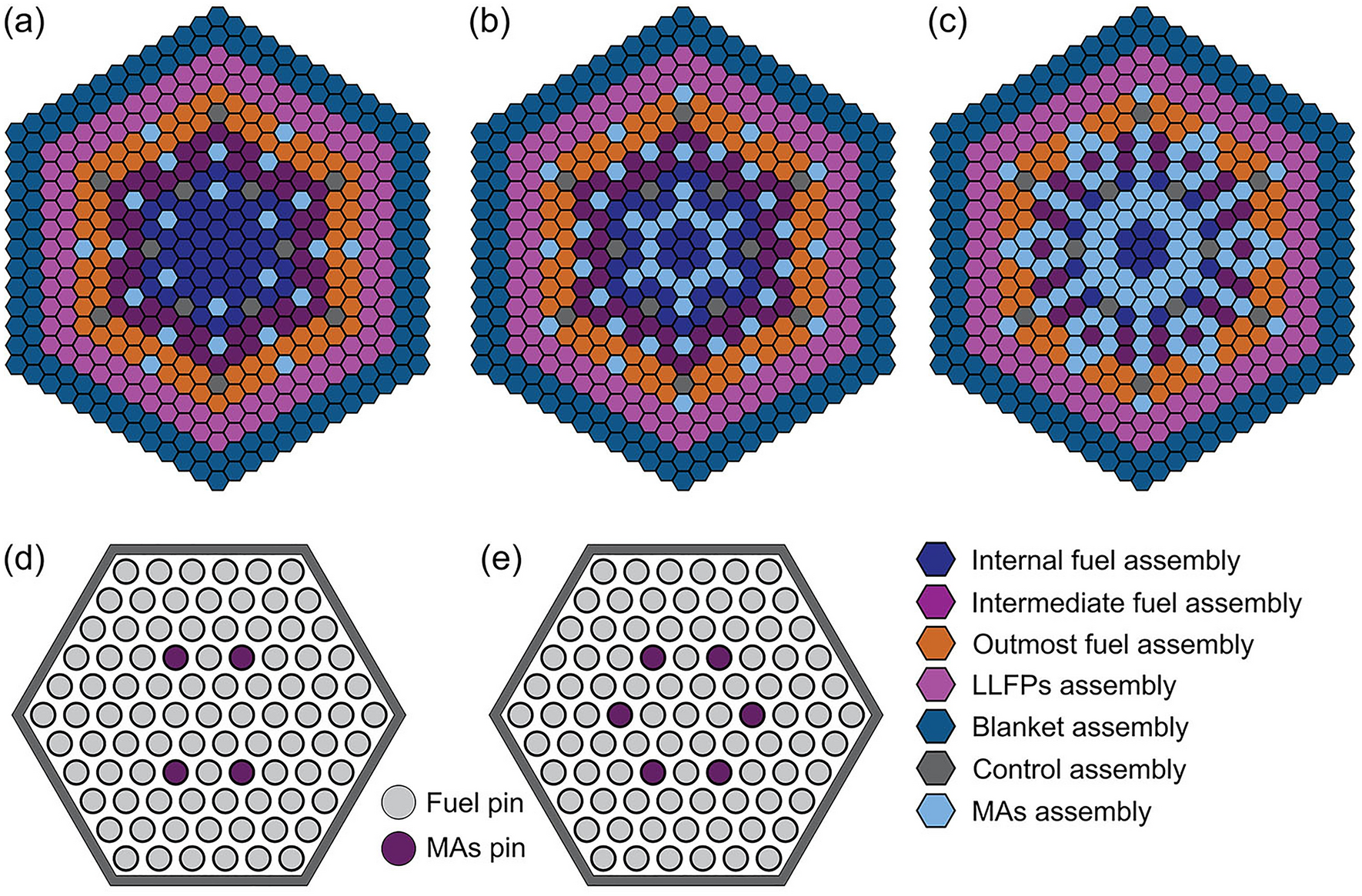

The distribution of MAs assembly in LFR with different loading amounts. In pads (a) and (b), the loading amounts are 0.5 wt% and 1.0 wt%, respectively and each MAs assembly contains four MAs pins, as shown in pad (d). In pads (b) and (c), the loading amounts are enhanced to 1.5 wt% and 2.0 wt%, respectively, and each MAs assembly contains six MAs pins, as shown in pad (e).
