From: Subduction thermal regime, petrological metamorphism and seismicity under the Mariana arc

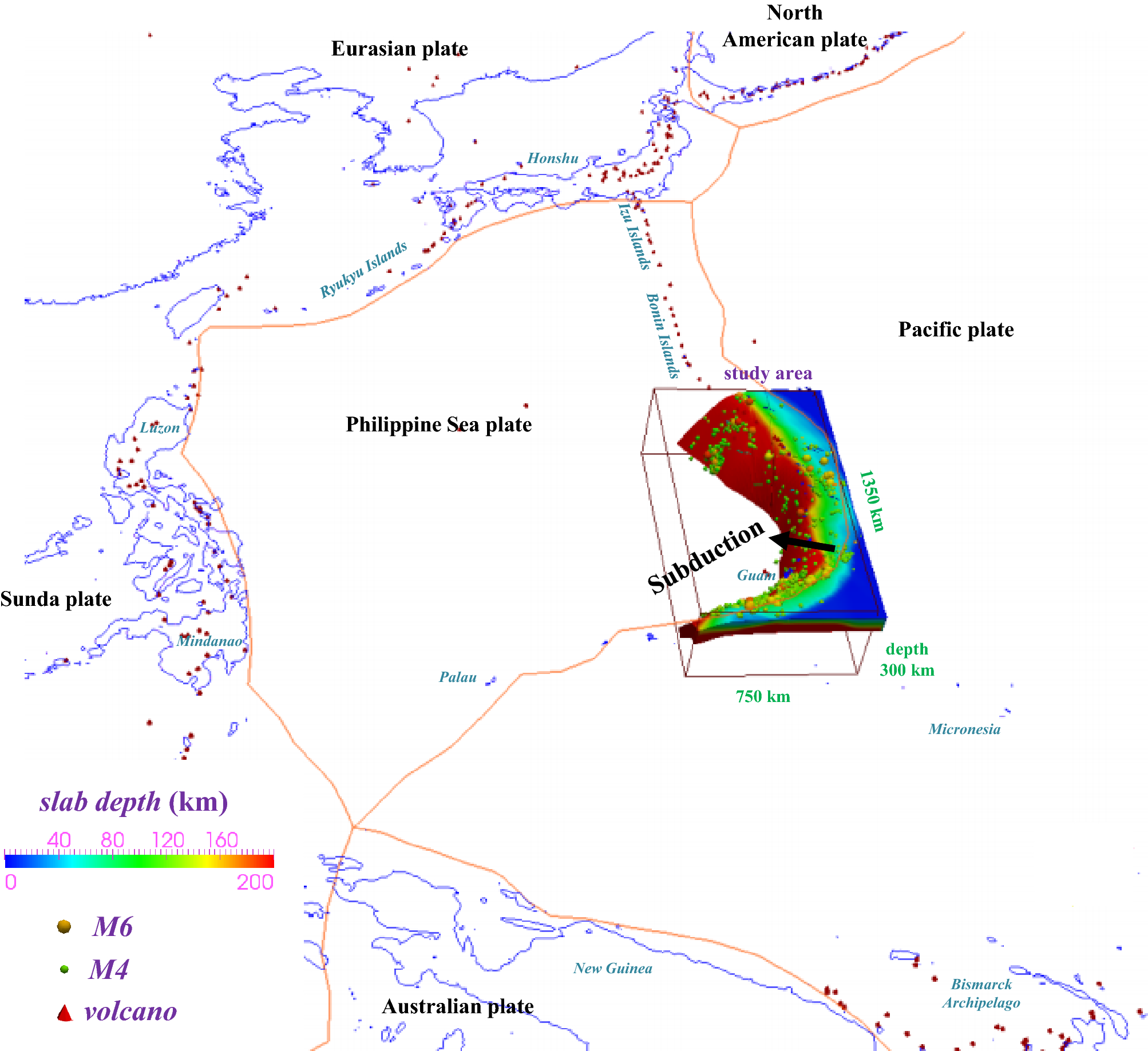

Model domain in the tectonic setting, including the model size, plate boundaries and arc volcanism. The plate boundaries follow Bird (2003)22. Red cones indicate active arc volcanoes21. The figure was created by using the software Paraview (version: Paraview 5.4.1, URL link: https://www.paraview.org/download/).
