Figure 5
From: Differentially expression analyses in fruit of cultivated and wild species of grape and peach

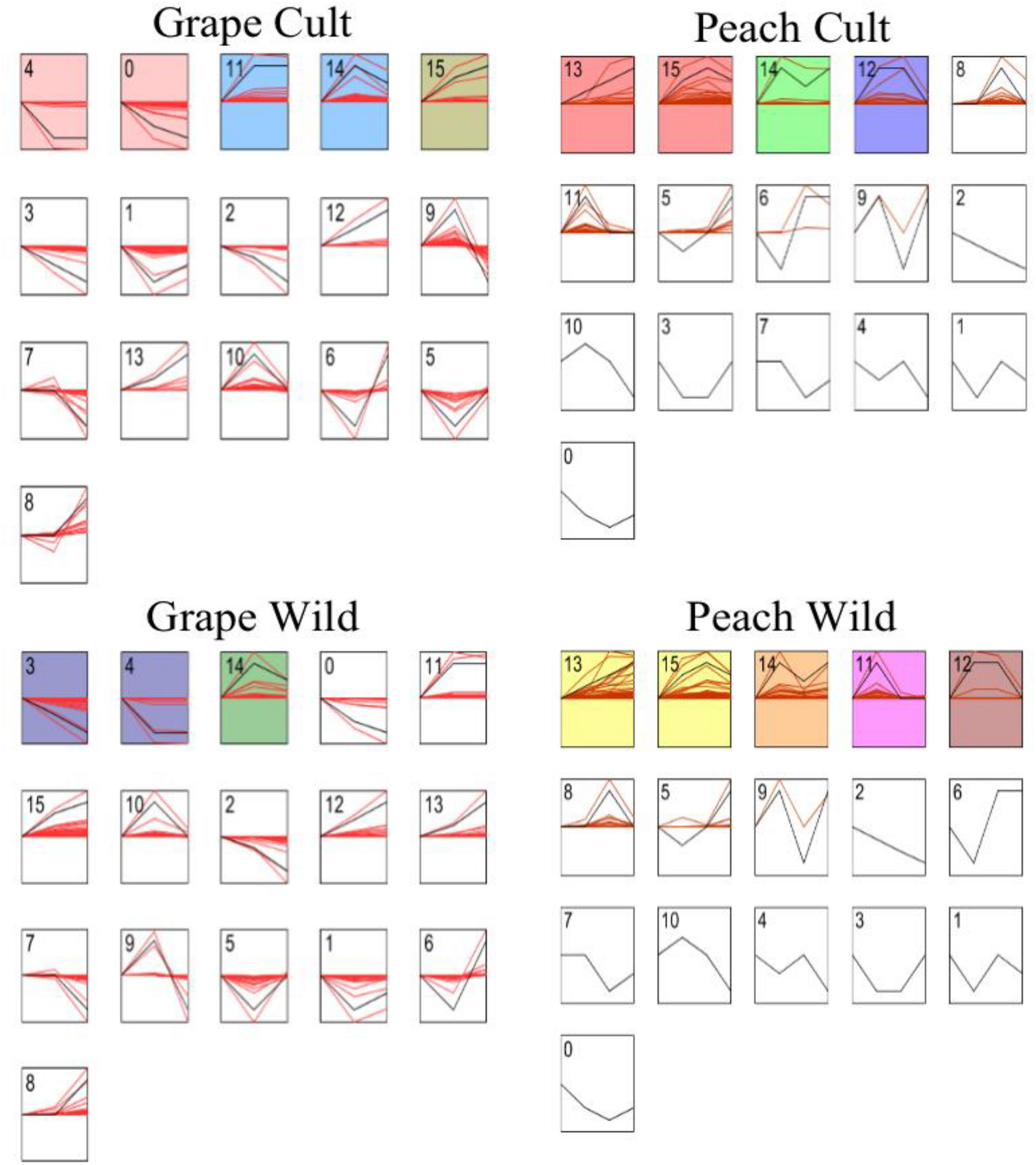

Short time-series expression miner analysis of gene expression in three periods of cultivar and wild grape and peach. Expression trends analysis of 878 differential expression genes in cultivar and wild grape species and 301 differentially expressed genes in cultivar and wild peach species. Each box represents a transcript expression pattern. The colored box indicates that there is a significant distribution of transcripts, the number in the upper left corner is the model number; the black line represents the total expression trend of the box, and the red line represents the expression trend of each gene in the box.
