Figure 8
From: Understanding microbiome dynamics via interpretable graph representation learning

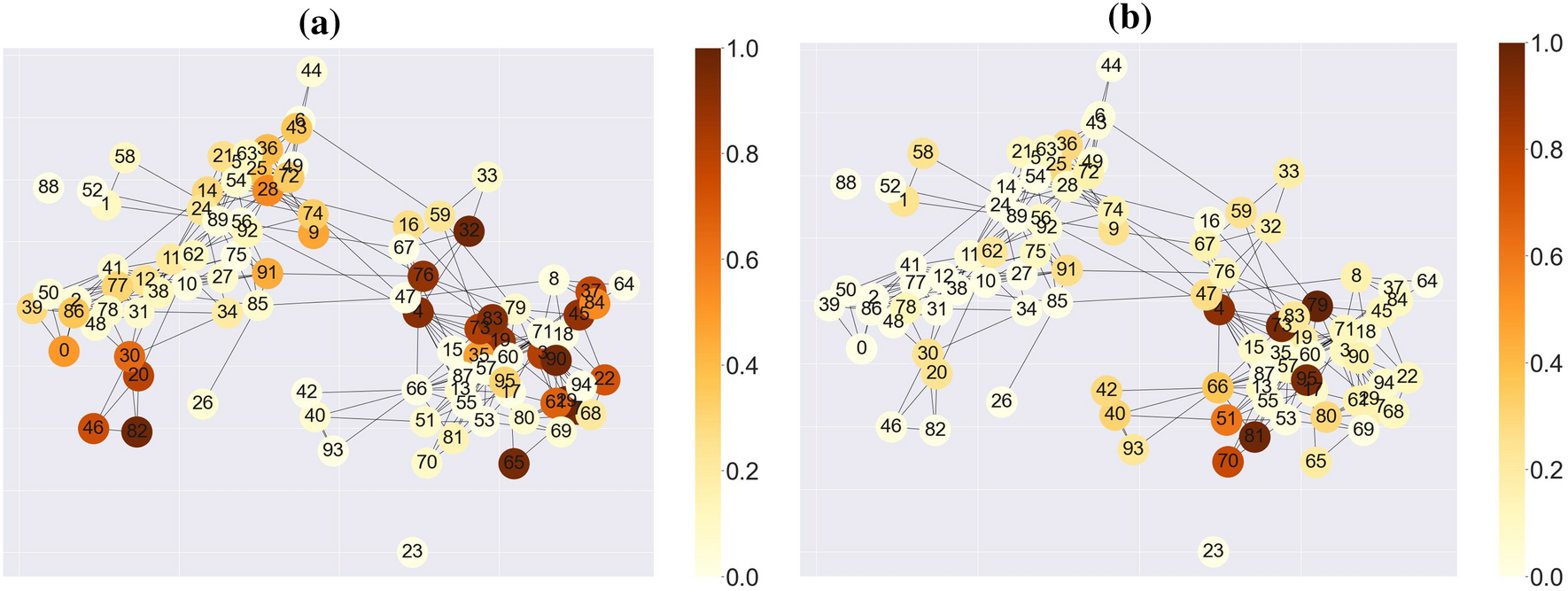

Co-occurrence interaction graphs of CholeraInf dataset with nodes coloured based on relevance scores of the LRP method, which are summed across each state: (a) diarrhea period and (b) recovery period. The locations of states are obtained by clustering points of the graph embedding of the time-evolving graph via k-means. The dark brown colour indicates nodes with the highest importance.
