Figure 2
From: Using machine learning with optical profilometry for GaN wafer screening

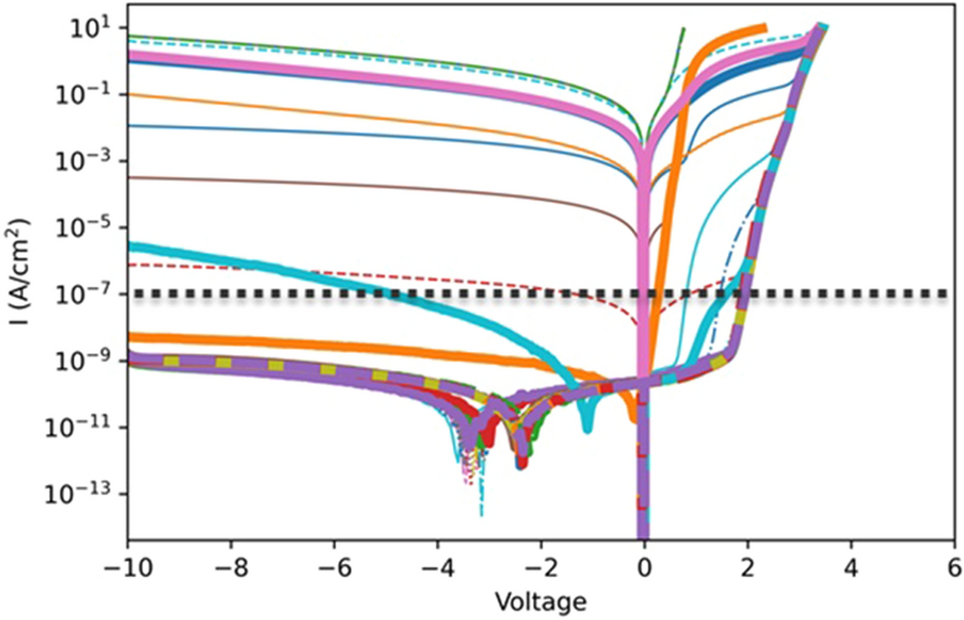

The diode IV curves are taken for all the F (square) devices measured. The dotted line represents the cutoff point for determining if the reverse bias leakage is good at −10 V in this study.
