Figure 3
From: Using machine learning with optical profilometry for GaN wafer screening

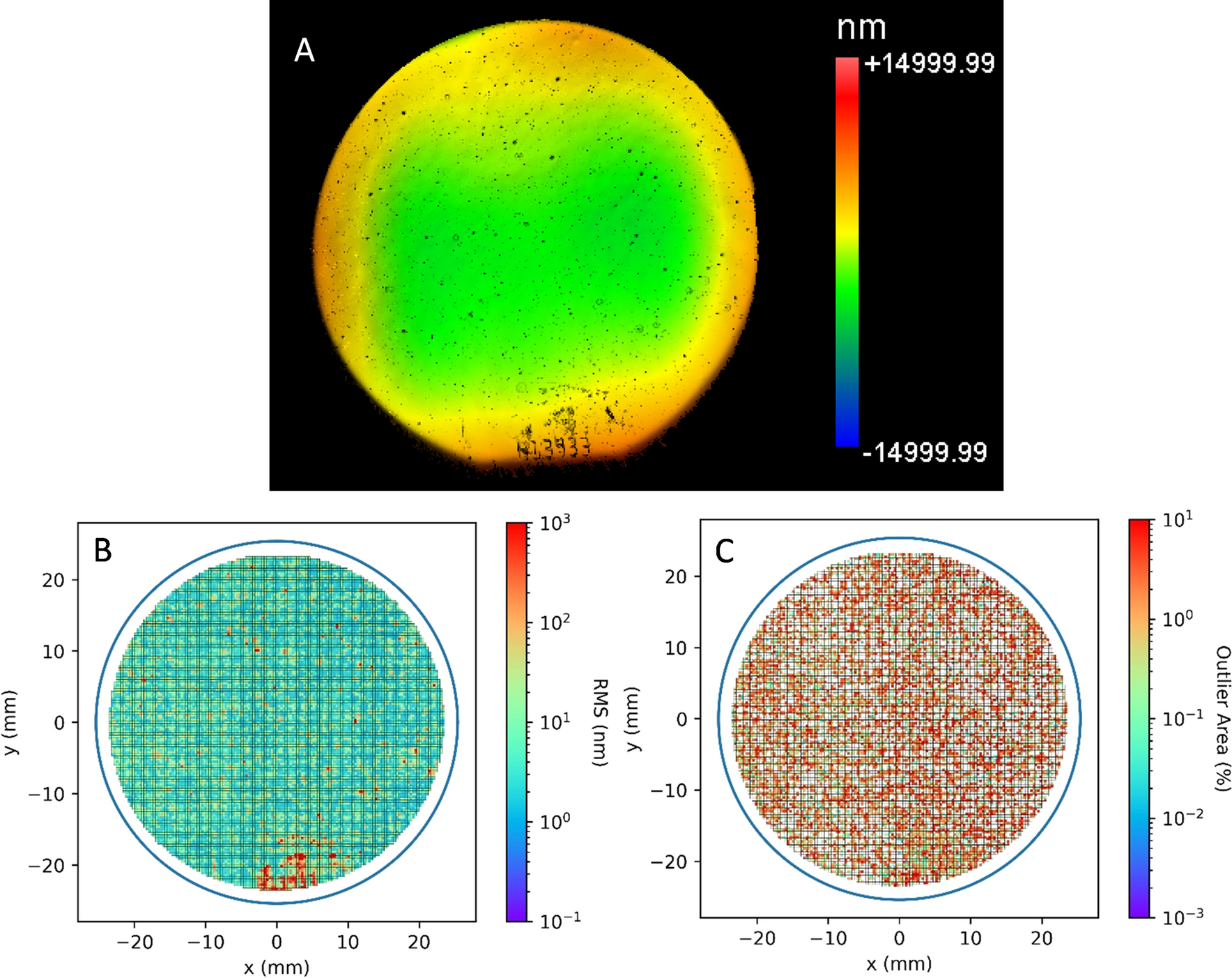

(A) Optical Profilometry image of a 2 in. wafer. (B) RMS roughness vs position divided into 325 × 325 µm2 squares. (C) Same as (B) except outlier area is in percent of pixels.
