Figure 2
From: Pien Tze Huang regulates phosphorylation of metabolic enzymes in mice of hepatocellular carcinoma

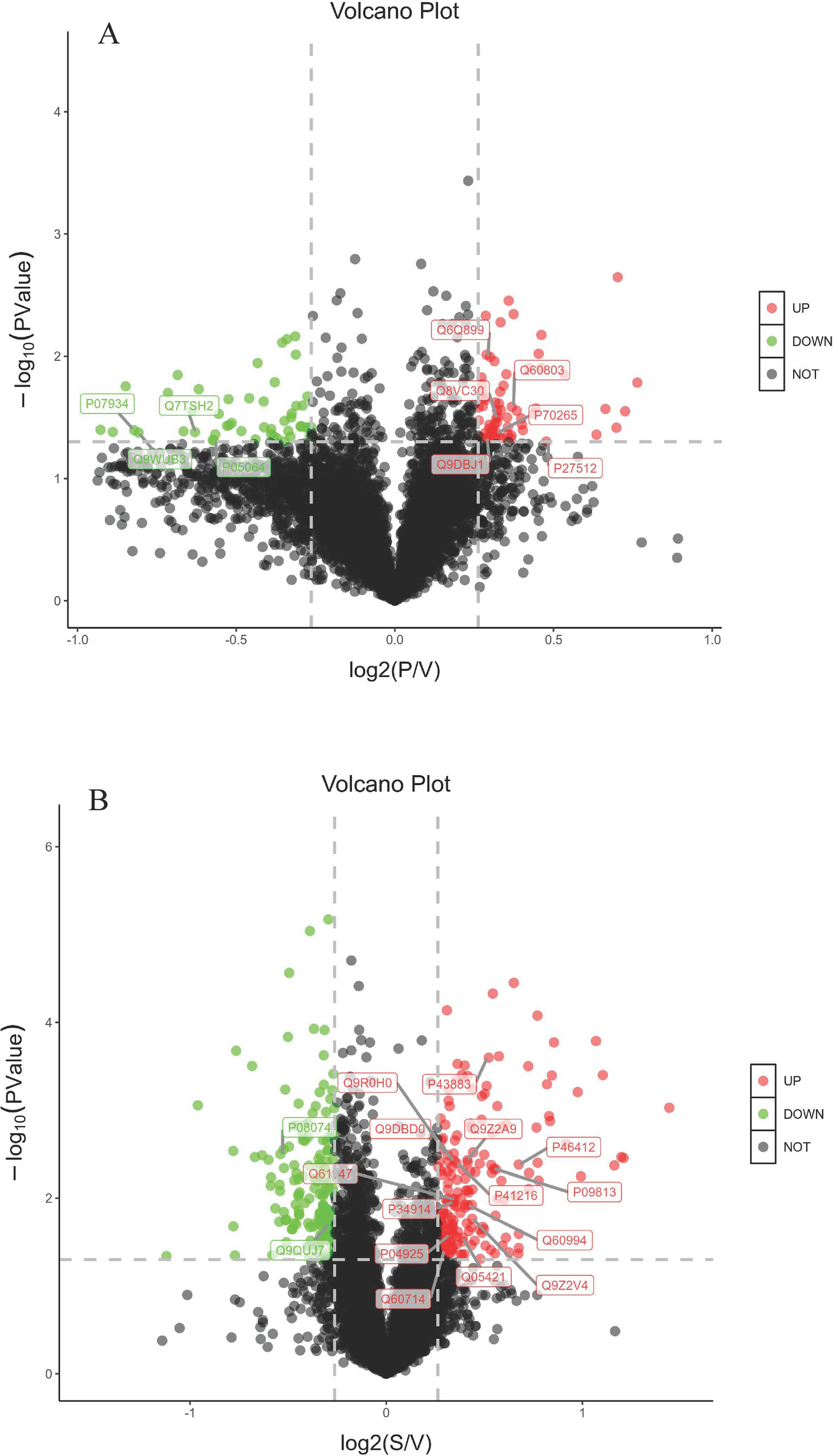

Volcano plots of proteomics treated with PZH (A) and sora (B) versus control group. In volcano plots, red and green spots represent differentially expression proteins (fold change > 1.2, p value < 0.05), and black spots represent the proteins changing insignificantly. The proteins of enriched KEGG pathways (fructose and mannose metabolism, glucagon signaling pathway and NF-kappa B signaling pathway in PZH vs. Control group, PPAR signaling pathway, arachidonic acid metabolism, and ferroptosis in Sora vs. Control group) were marked in the volcano maps, these proteins were selected to further PRM verification.
