Figure 4
From: Pien Tze Huang regulates phosphorylation of metabolic enzymes in mice of hepatocellular carcinoma

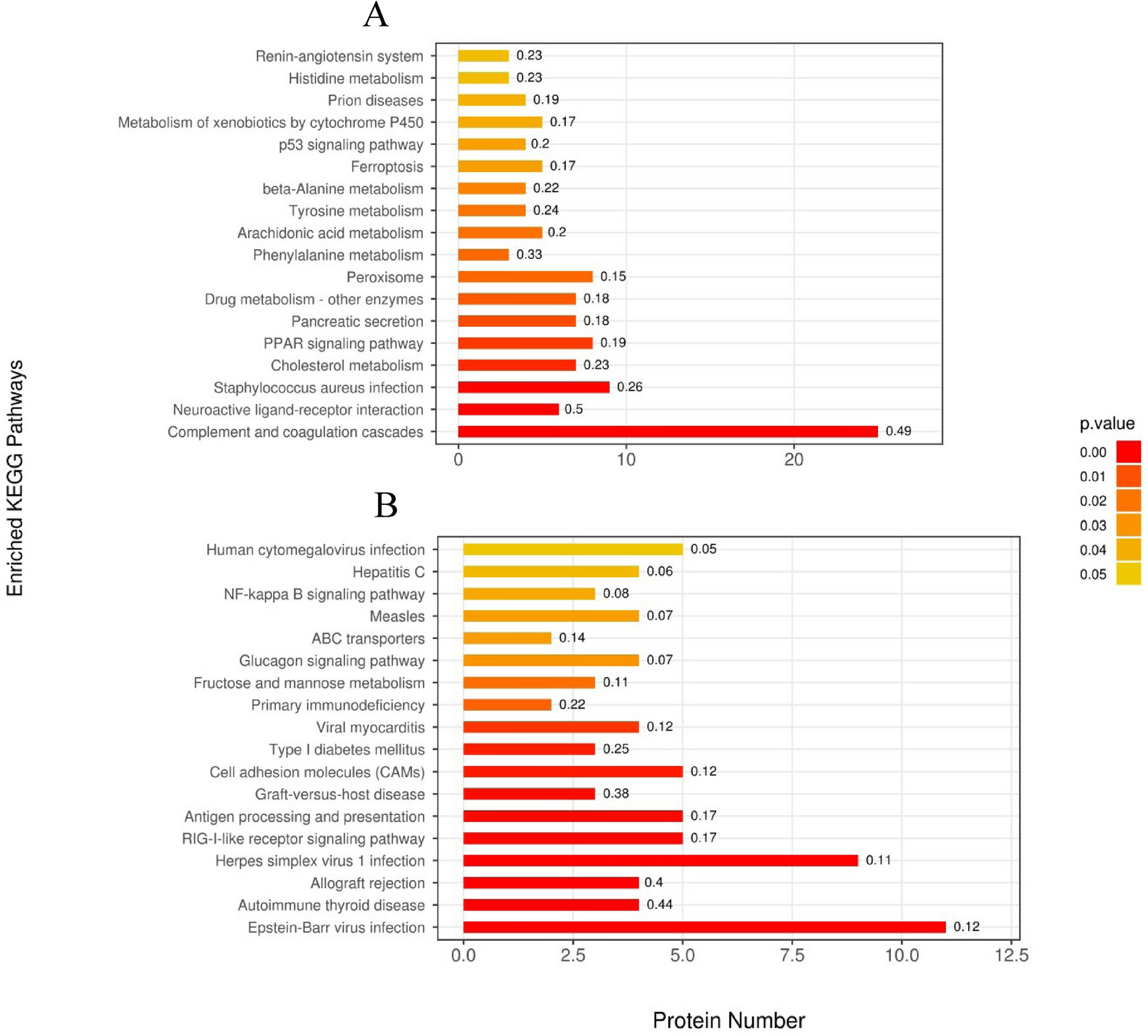

KEGG pathway enrichment analysis of proteomics treated with PZH (A) and sora (B). The ordinate represents the significantly enriched KEGG pathway, the abscissa represents the number of differentially expressed proteins contained in each KEGG pathway. The color gradient represents the size of the p value, the closer to red, and the smaller of p value, which corresponds to the enrichment degree of the KEGG pathway. The label above the bar graph shows the enrichment factor which indicates the ratio of differentially expressed proteins to the identified proteins involved in the pathway.
