Figure 8
From: Pien Tze Huang regulates phosphorylation of metabolic enzymes in mice of hepatocellular carcinoma

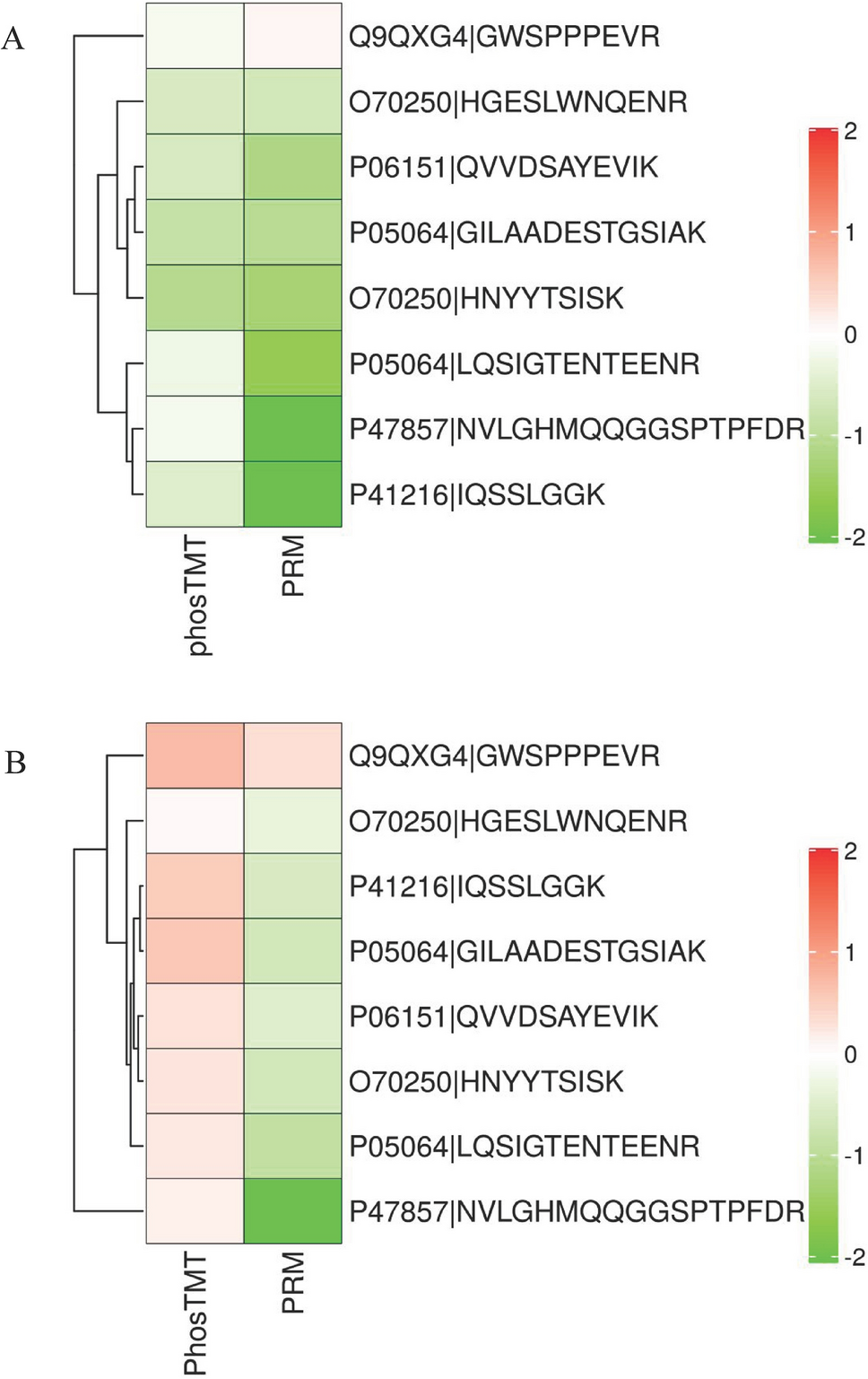

Heat map summary of 8 selected phosphopeptides in PRM verification (right) and TMT phosphoproteomics (left) treated with PZH (A) and sorafinib (B). In the heatmaps, average expression level of 8 phosphorylated peptides displayed in Table 3 were presented as different colour, where red represents significantly up-regulated phosphorylated peptide, green represents significantly down-regulated phosphorylated peptide.
