Figure 3
From: Engineered mineralogical interfaces as radionuclide repositories

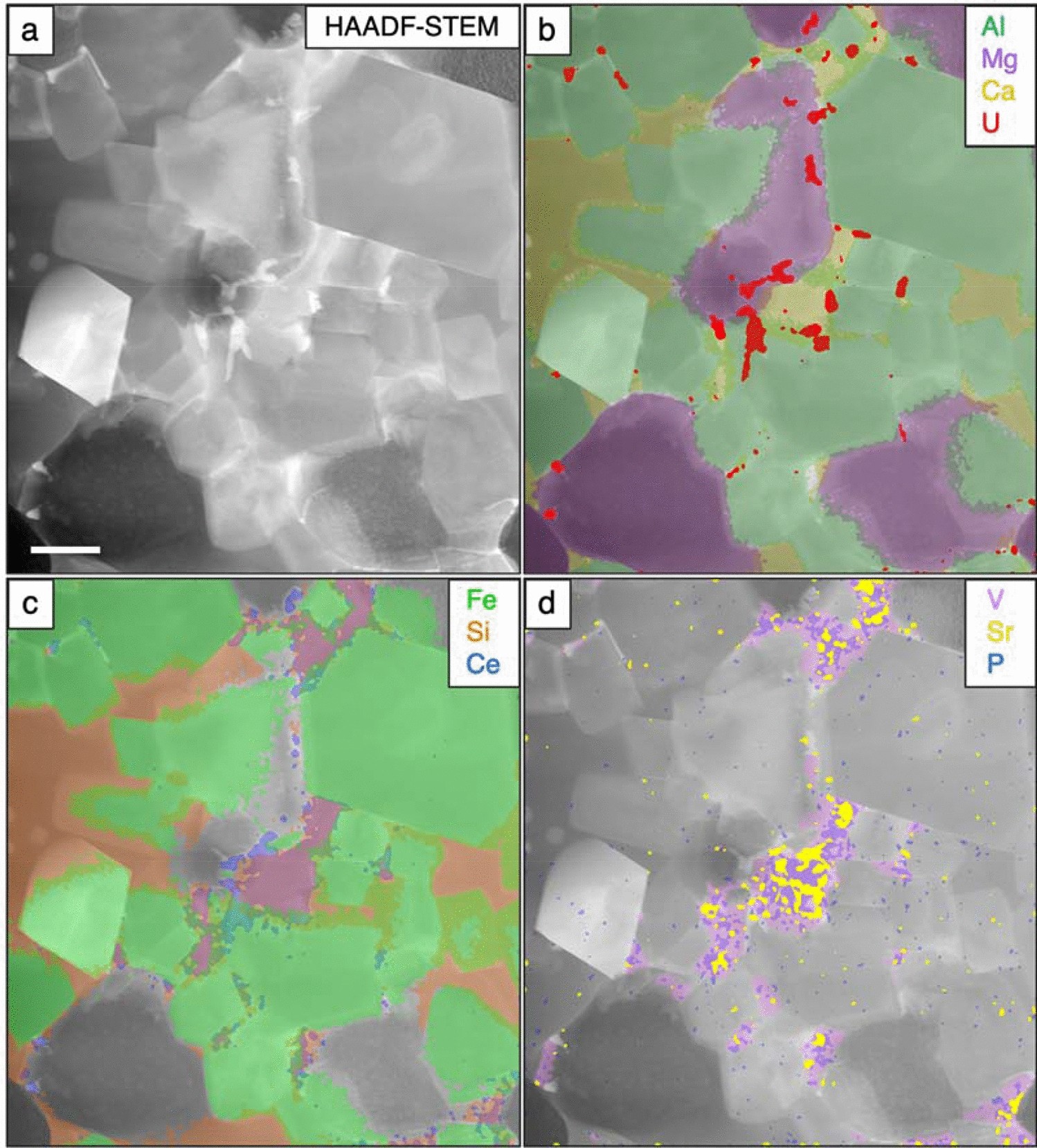

HAADF-TEM images (a) greyscale, (b) false color element images of Al (green), Mg (purple), Ca (yellow) and U (red), (c) false color element images of Fe (green), Si (orange) Ce (blue), and (d) V (pink), Sr (yellow) and P (blue)—where P and Sr are coincident, P appears as a pale purple. Scale bar in (a) is 500 nm.
