Figure 4
From: Probabilistic sea level rise flood projections using a localized ocean reference surface

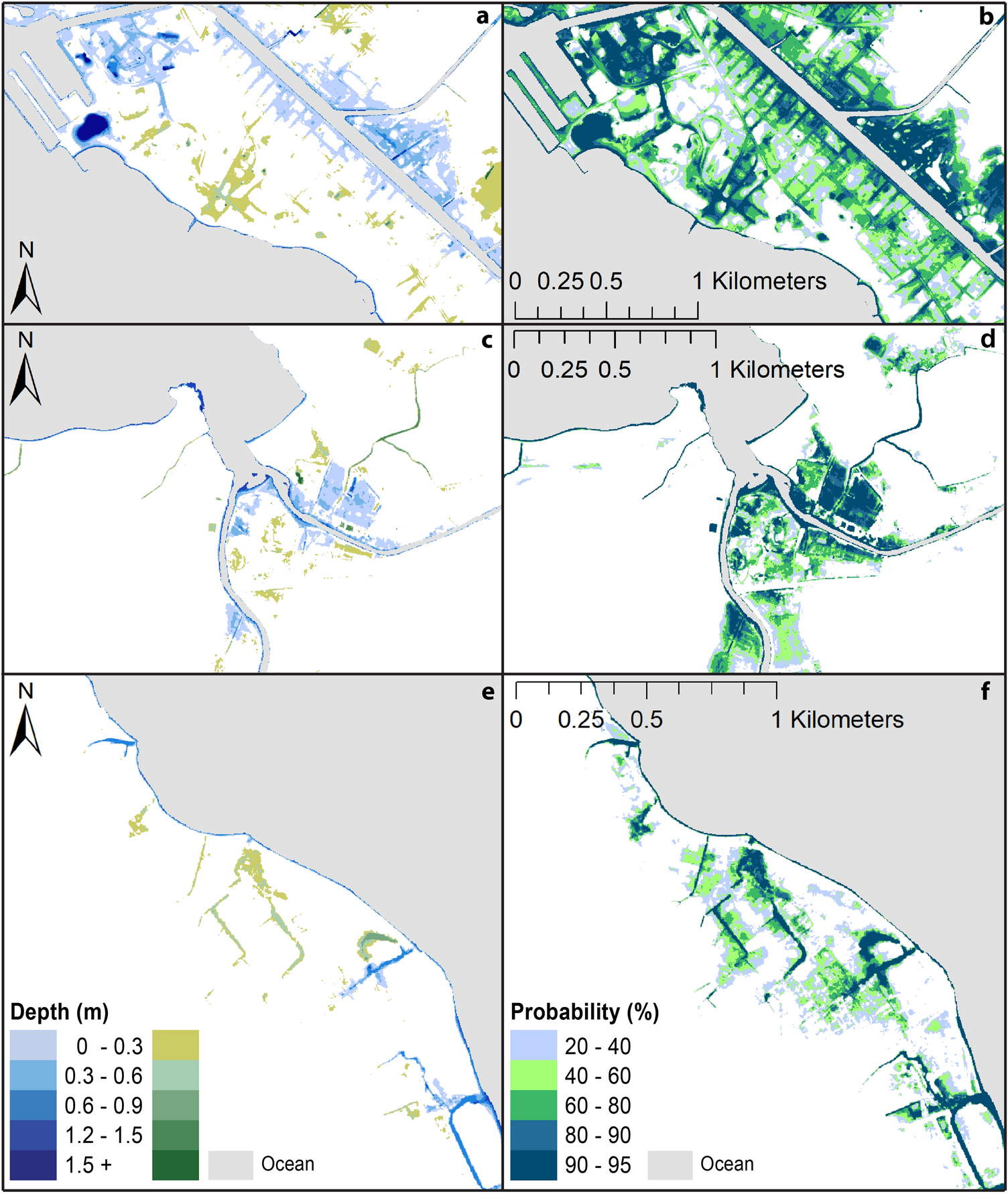

Maps depicting flooding under the Intermediate scenario by 2100 of Sweet et al.23 for the Honolulu tide gauge (1.19 m) using the ORS method. (a,c,e) Show the range of flood-depths with at least 80% probability of occurrence for Waikīkī, Haleʻiwa and Hauʻula, respectively (blues—surficially connected; greens—topographically isolated). (b,d,f) Show probability ranges for lands experiencing any amount of flooding in Waikīkī, Haleʻiwa and Hauʻula, respectively (distinction between surficially connected and topographically isolated not identified). (Maps generated with ArcGIS Desktop 10.8.2; http://www.esri.com).
