Figure 7
From: Probabilistic sea level rise flood projections using a localized ocean reference surface

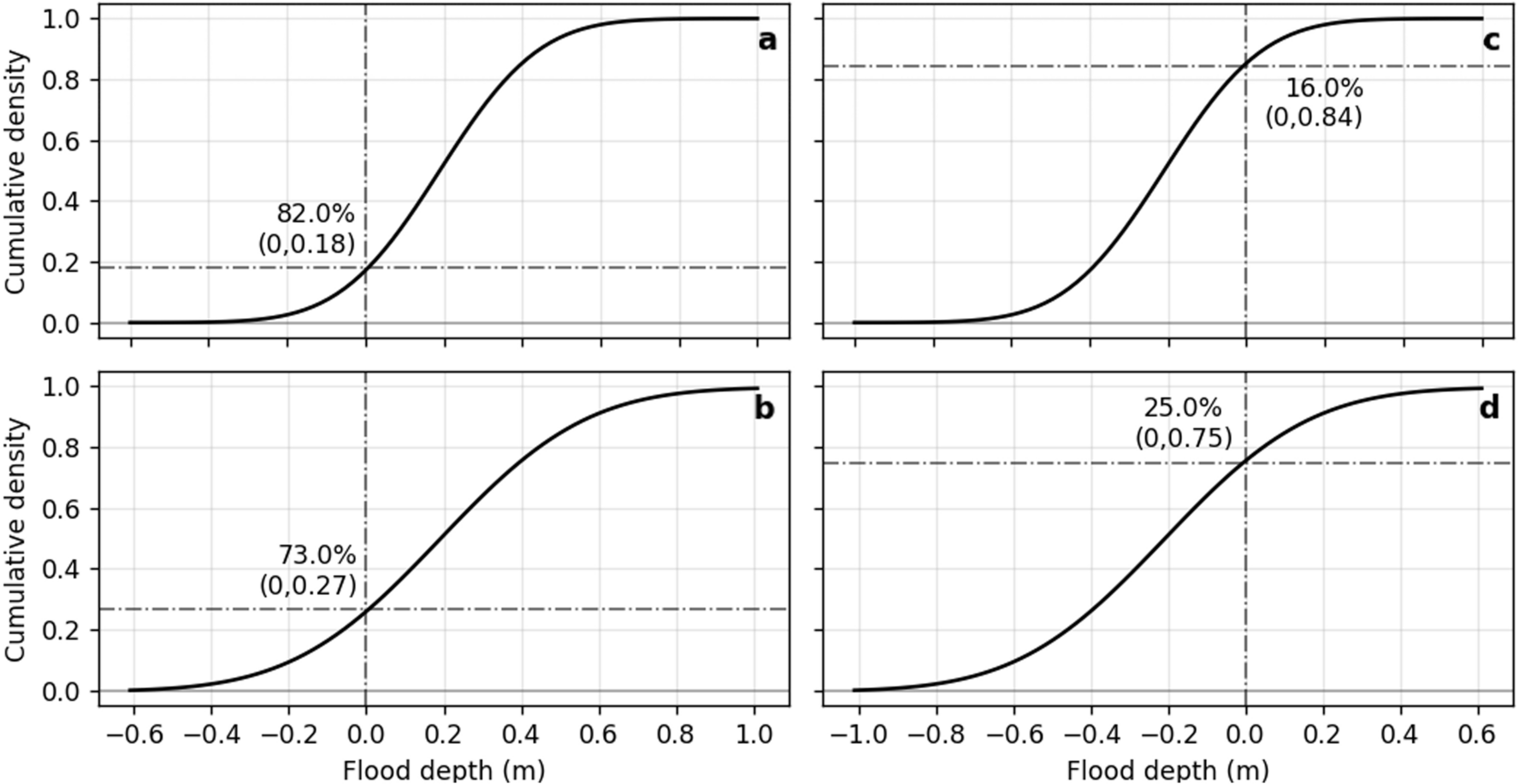

Comparison of two pairs of CDFs with the same mean but different flood-depth spread. CDF pair 8a and 8b illustrate differences that would result in an at least 80% probability-based map. CDF pair 8c and 8d show the result of a probability-based map of at least 20%. The figure illustrates how the shape of the CDF affects probability for a given flood depth.
