Figure 5 | Scientific Reports

Figure 5

From: Antioxidant enzymes that target hydrogen peroxide are conserved across the animal kingdom, from sponges to mammals

Figure 5

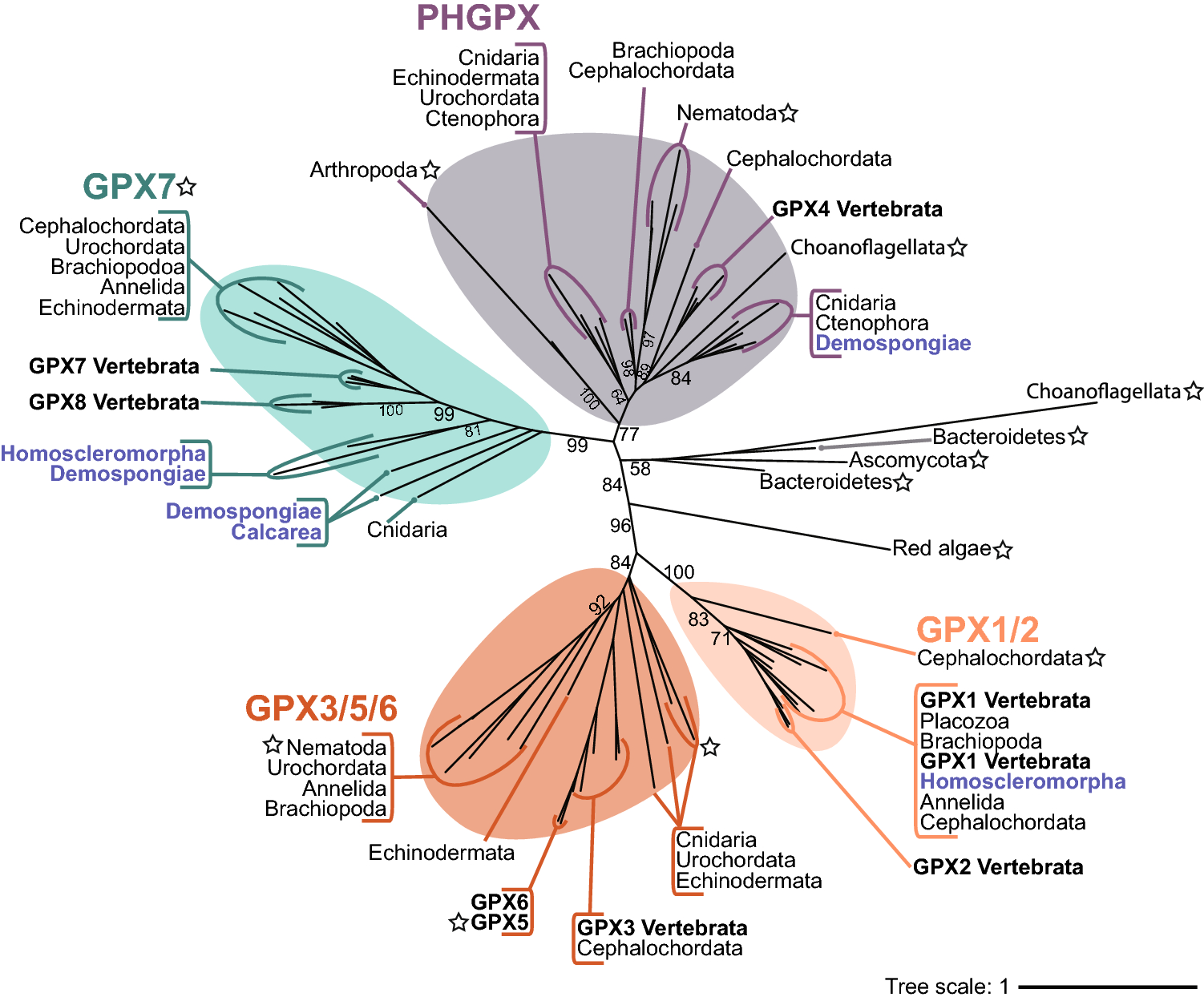

Maximum likelihood phylogenetic tree of GPX enzyme family. Unrooted tree displaying GPX subfamilies, GPX1/2 (peach), GPX3/GPX5/GPX6 (orange), GPX7/GPX8 (turquoise), and PHGPX/GPX4 (grey). Labels in blue denote sequences encoded by phylum Porifera. Labels with a star indicate cysteine GPXs, where cysteine is the catalytic residue. Subfamily GPX7 is exclusively cysteine dependant for all species. Black numbers on branches indicate bootstrap support. Branch lengths represent evolutionary distances, indicated by tree scale. Constructed based on edited alignment, 1000 bb and the LG + G5 evolutionary model.
