Figure 1

From: How scan parameter choice affects deep learning-based coronary artery disease assessment from computed tomography

Figure 1

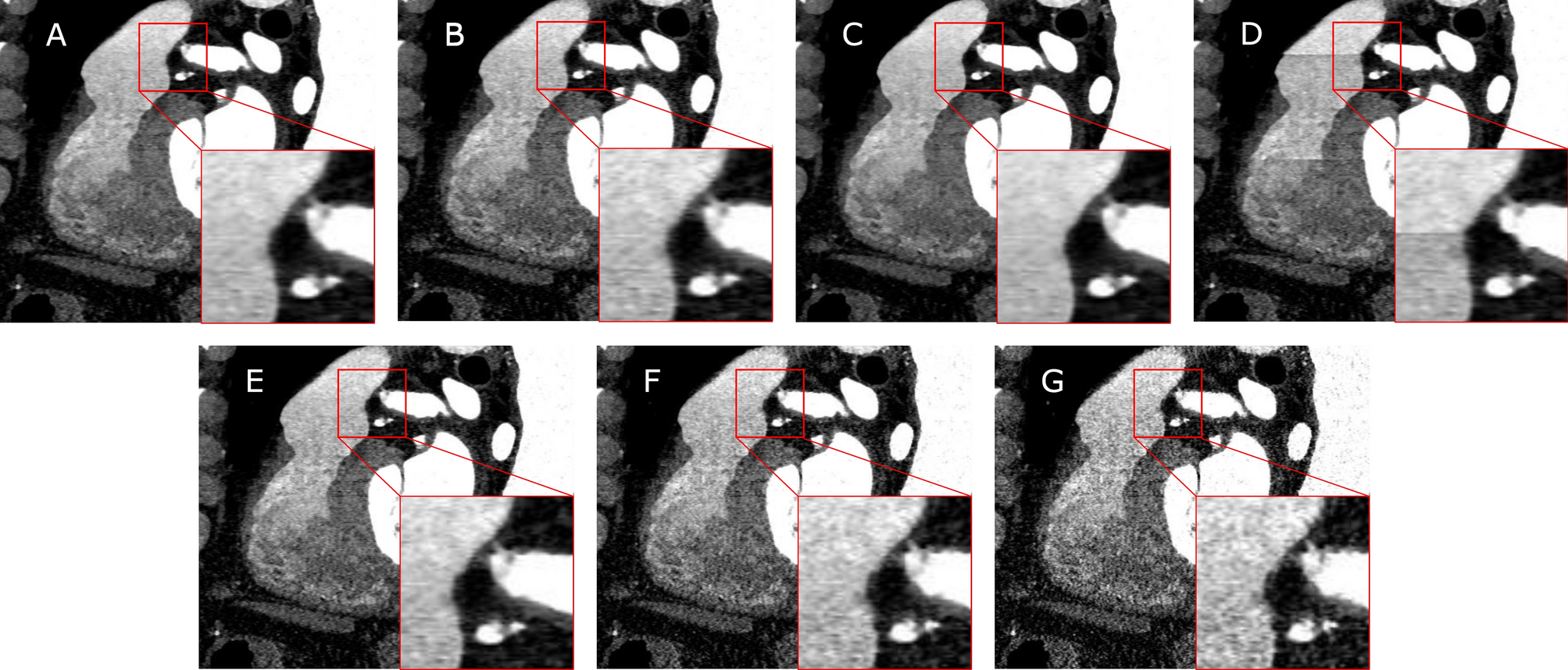

Sagittal views of a CCTA scan reconstructed with different parameters. The default configuration (A) reconstructed with an Advanced Modeled Iterative Reconstruction (ADMIRE) strength of 3, mixed stack and Bv36 kernel is varied by using: an ADMIRE strength of 2 (B) or 4 (C), using true stack (D) and utilizing a Bv40 (E), Bv44 (F) or Bv49 (G) reconstruction kernel.
