From: Detection of a reduced susceptibility to chlorfenapyr in the malaria vector Anopheles gambiae contrasts with full susceptibility in Anopheles funestus across Africa

Figure 6

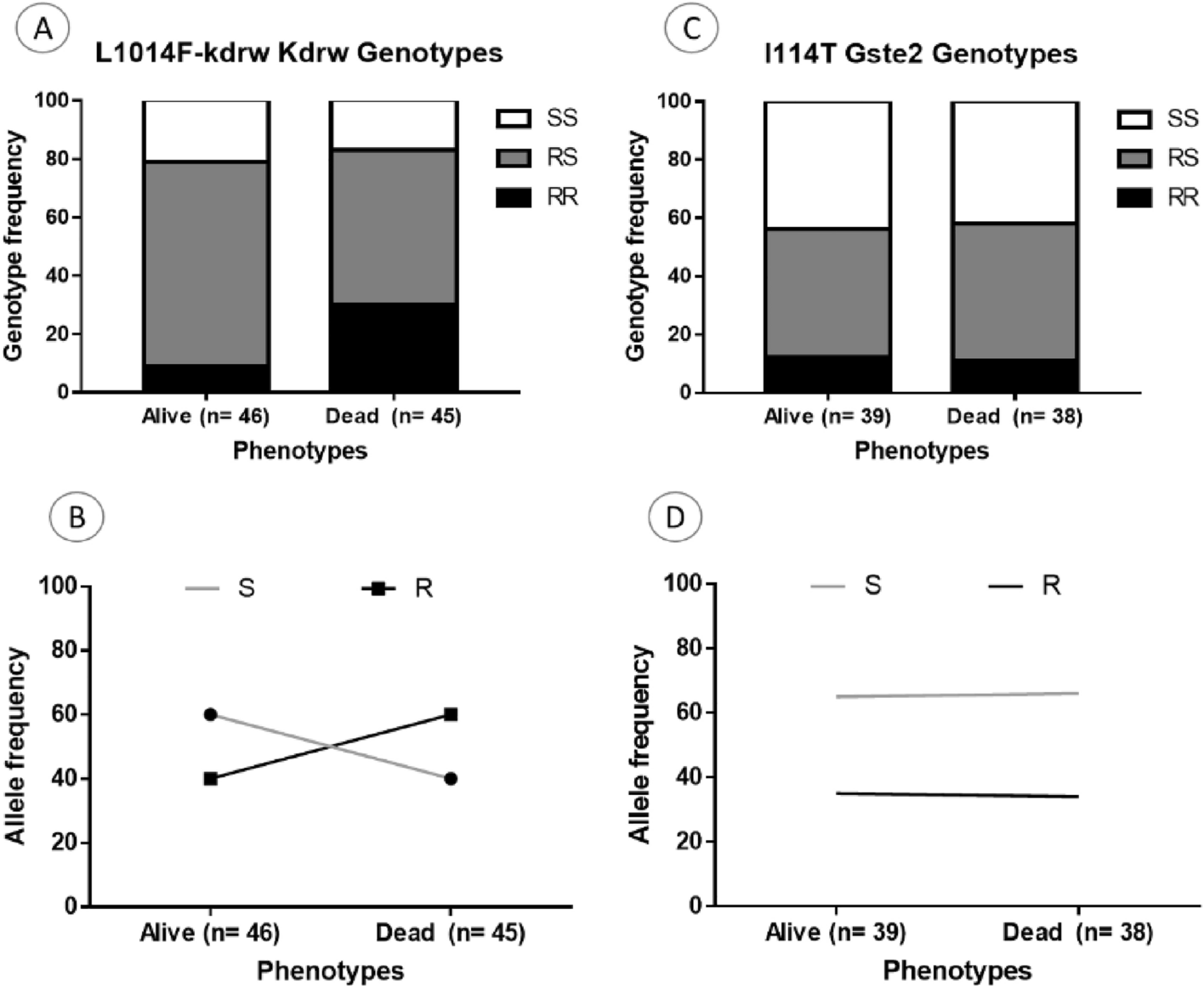

Association between pyrethroids resistance markers and resistance to chlorfenapyr in An. gambiae. Distribution of the L1014F-Kdr_w genotypes (A) and alleles (B) among the dead and alive mosquitoes after exposure to chlorfenapyr and (C) and (D) for I114T-GSTe2. R represents the resistant allele while S represent the susceptible allele.
