From: Genome-wide identification and characterization of parthenocarpic fruit set-related gene homologs in cucumber (Cucumis sativus L.)

Figure 5

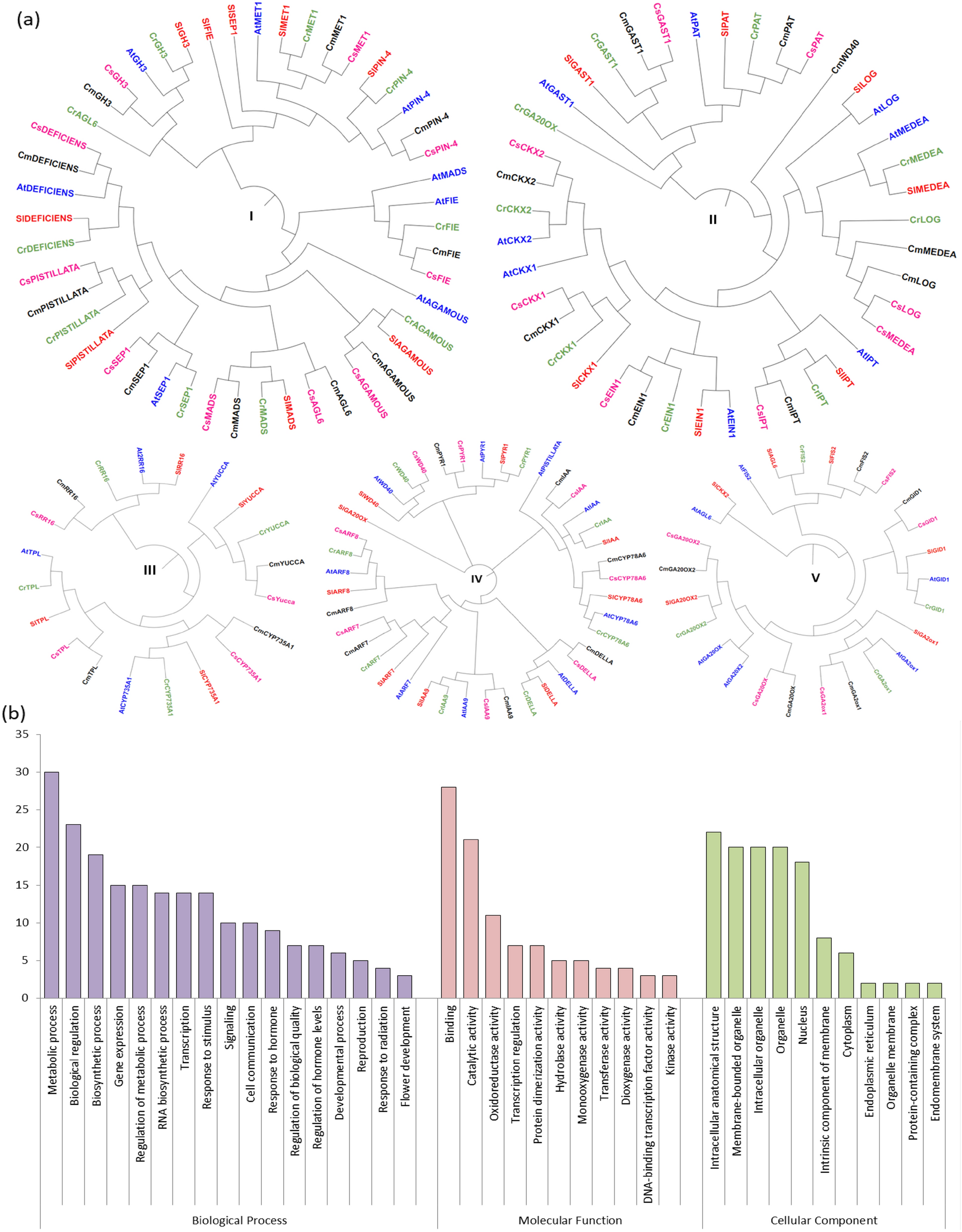

(a) Phylogenetic trees (homology groups I–V) showing relationship among 175 PRGs from Arabidopsis (At, blue), melon (Cm, black), citrus (Cr, green), cucumber (Cs, pink), and tomato (Sl, red) (b) Distribution of cucumber PRGs among three categories (cellular component, molecular functions and biological processes) via gene ontology analysis.
