Figure 1
From: Molecular biological features of cyst wall of adamantinomatous craniopharyngioma

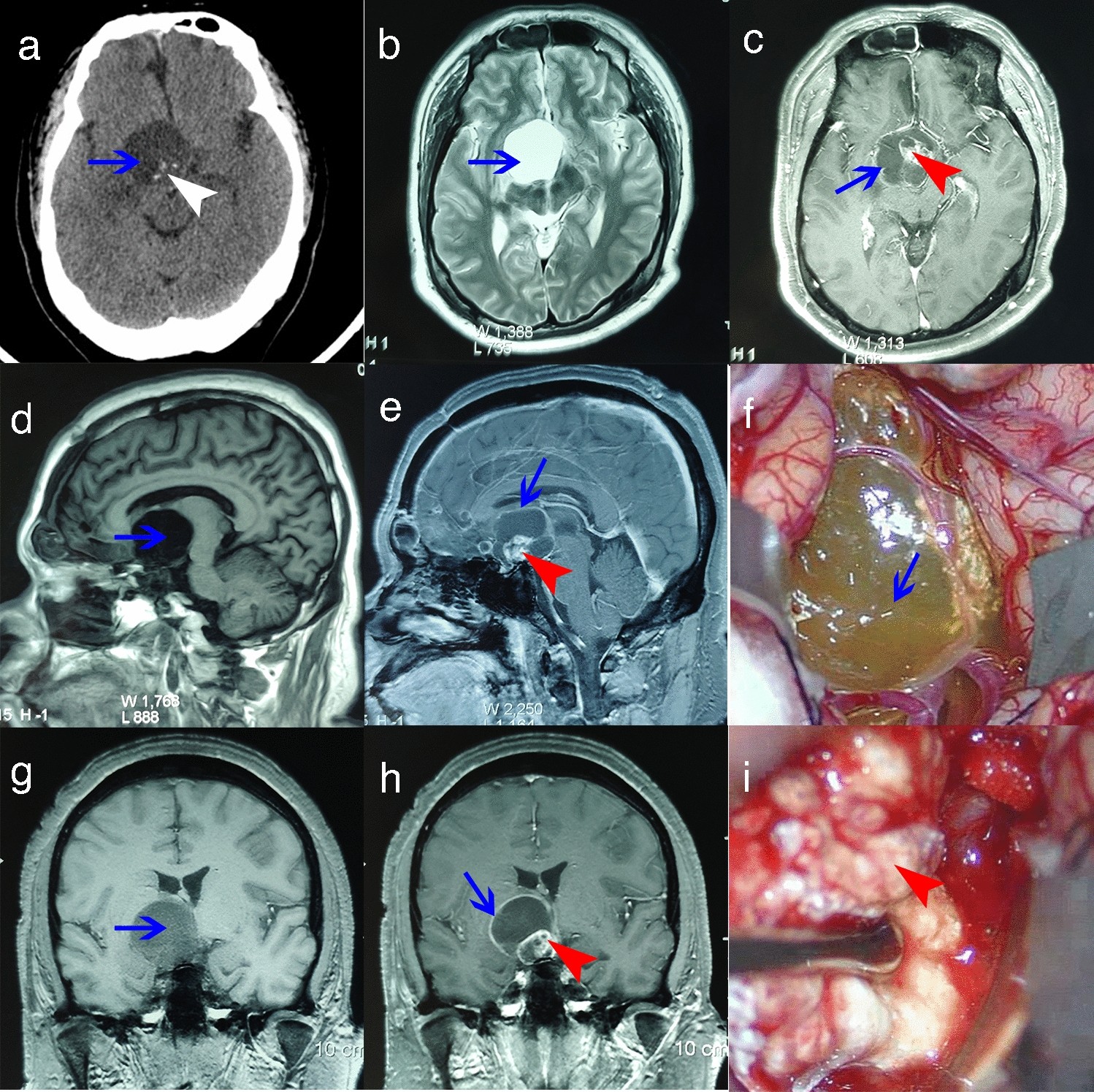

Preoperative and intraoperative imaging of cyst wall and solid body. (a) CT scan shows low-density cystic lesion and high-density calcifications (blue arrow, cyst; white arrowhead, calcifications). (b) T2-weighted axial MRI shows hyperintense signal lesion (blue arrow: cyst). (c,e,h) T1-weighted enhanced MRI shows the peripheral cyst wall and heterogeneous solid body (blue arrow, cyst wall; red arrowhead, solid body). (d,g) T1-weighted MRI shows hypointense signal lesions (blue arrow: cyst). (f,i) Cyst wall and solid body during operation (blue arrow, cyst wall; red arrowhead, solid part).
