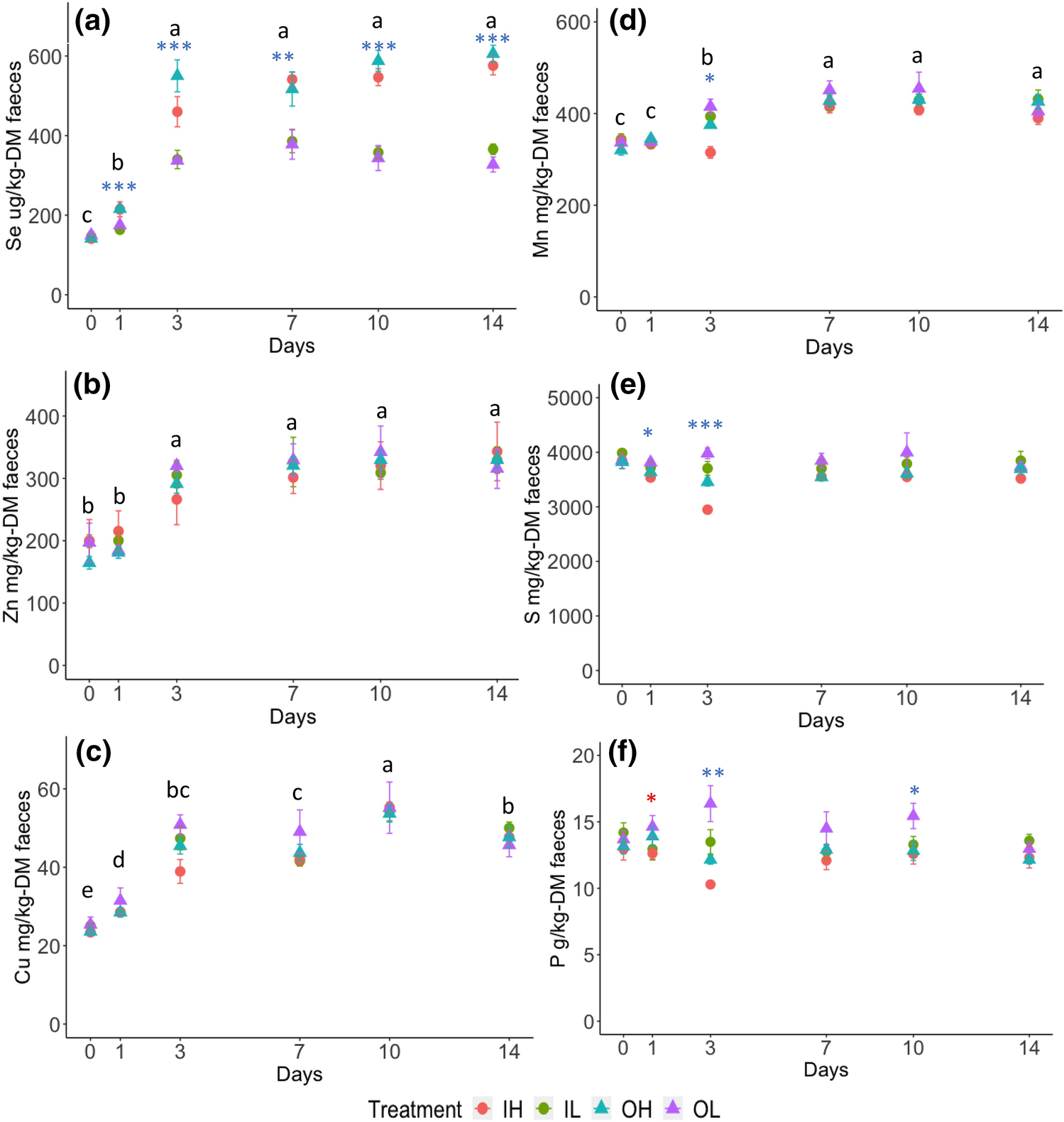

Figure 2
The concentrations of micronutrients and macronutrients in the faeces of sheep during the supplementary period. (a) Se (μg kg−1DM) in faeces (b) Zn (mg kg−1DM) in faeces (c) Cu (mg kg−1DM) in faeces (d) Mn (mg kg−1DM) in faeces (e) S (mg kg−1DM) in faeces (f) P (g kg−1DM) in faeces. The error bars are the standard errors (n = 6) of the samples. The colour of the symbol: ‘
’, ‘
’, ‘*’ represents the significant effect from supplement form (F1), supplementary dose (F2), the interaction of F1 and F2, respectively. The number of starts ‘*’, ‘**’ and ‘***’ indicate statistical significances of ANOVA test at p-value < 0.05, < 0.01, and < 0.001, respectively. The lowercase English letters represent the statistical results of post-hoc LSD test of temporal effect following a significant result of ANOVA test.
