Figure 4

From: Fungal cell barriers and organelles are disrupted by polyhexamethylene biguanide (PHMB)

Figure 4

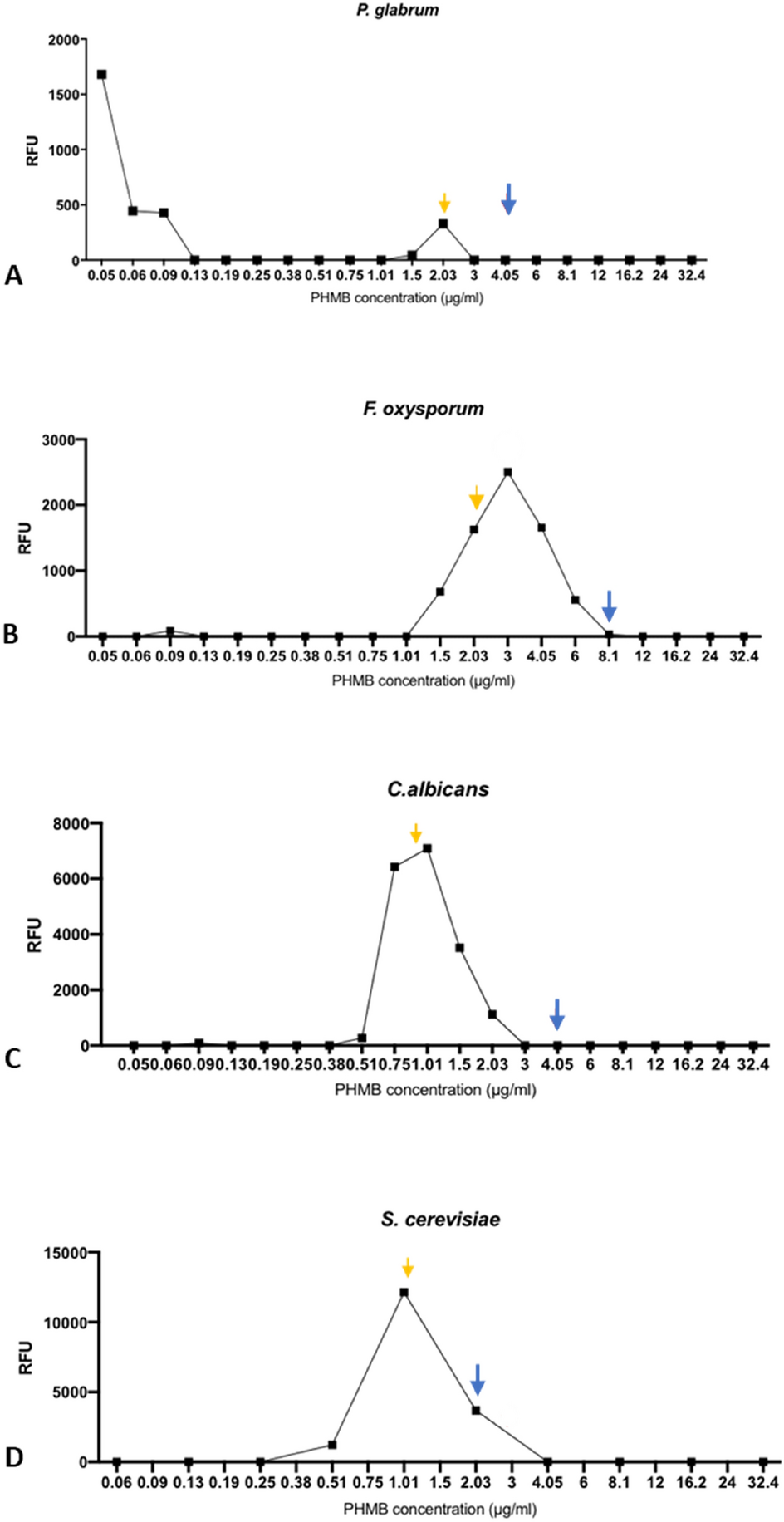

The effect of PHMB concentration on fungal cell membrane permeabilisation. SYTOX Green (8 µM) and PHMB concentrations were added to fungi (1 × 104 cells/ml) in RPMI-1640, 2% glucose. Samples were incubated for 3 h, with fluorescence measurements taken after the incubation period. (A) P. glabrum (B) F. oxysporum (C) C. albicans (D) S. cerevisiae. Yellow arrow = MIC50 concentration. Blue arrow = MIC90 concentration.
