From: Reversal of aging-associated increase in myelopoiesis and expression of alarmins by angiotensin-(1–7)

Figure 7

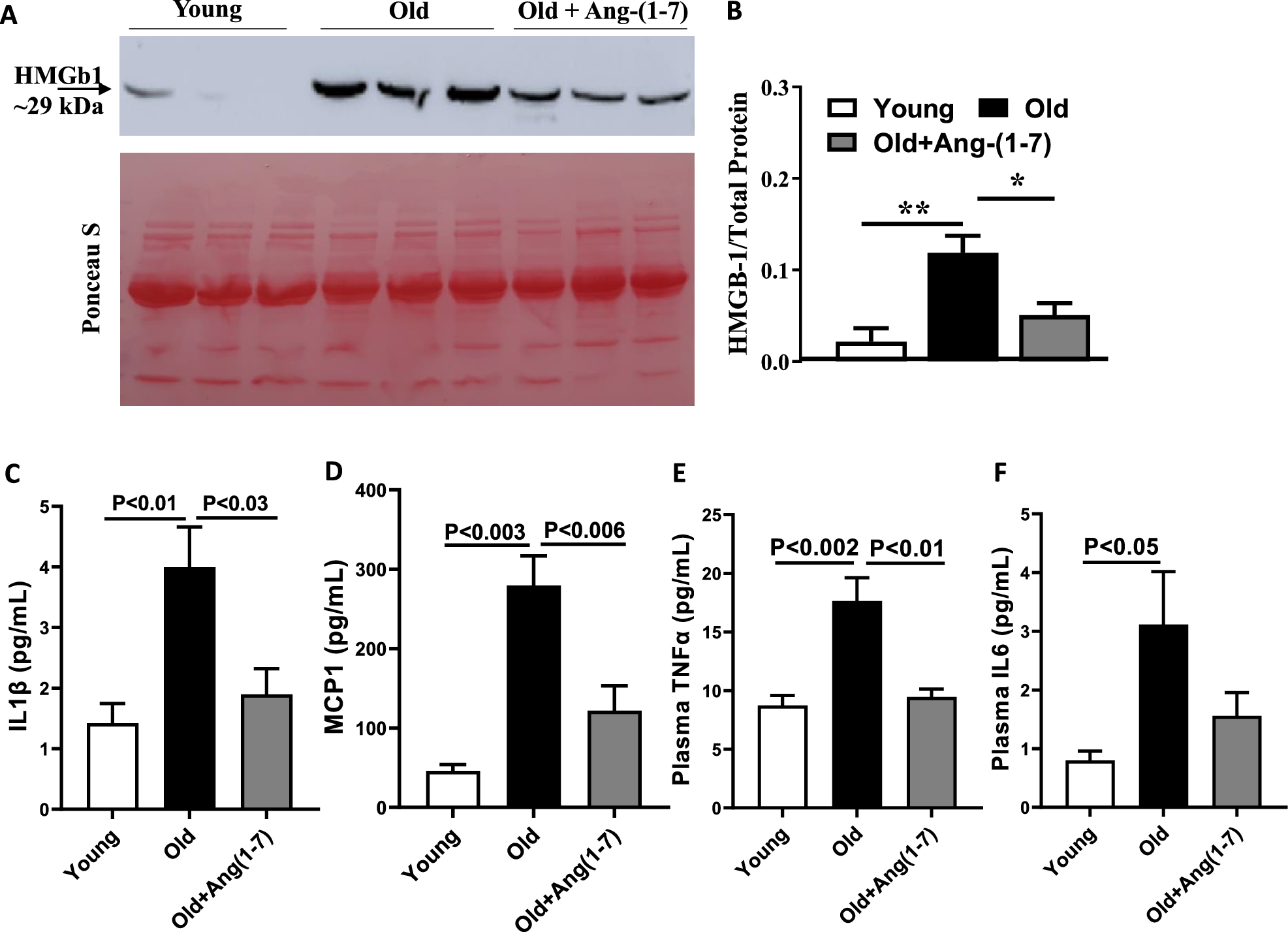

Ang-(1–7) decreased the concentrations of circulating inflammatory factors in the aging mice. (A) Representative western blots of HMGB1 levels in the plasma samples of Young, Old and Ang-(1–7)-treated Old mice. Ponceau S was used for the estimation of total protein. (CF) Old mice have higher levels of HMGB1 in the circulation (**P < 0.01, n = 6) that were decreased by Ang-(1–7) (*P < 0.05, n = 6). IL1β, MCP1, TNFα and IL6 levels were higher in the plasma samples of Old mice compared to the Young. With exception of IL6, Ang-(1–7) decreased the levels of pro-inflammatory factors in the Old mice (n = 6).
