From: Taxonomic and enzymatic basis of the cellulolytic microbial consortium KKU-MC1 and its application in enhancing biomethane production

Figure 2

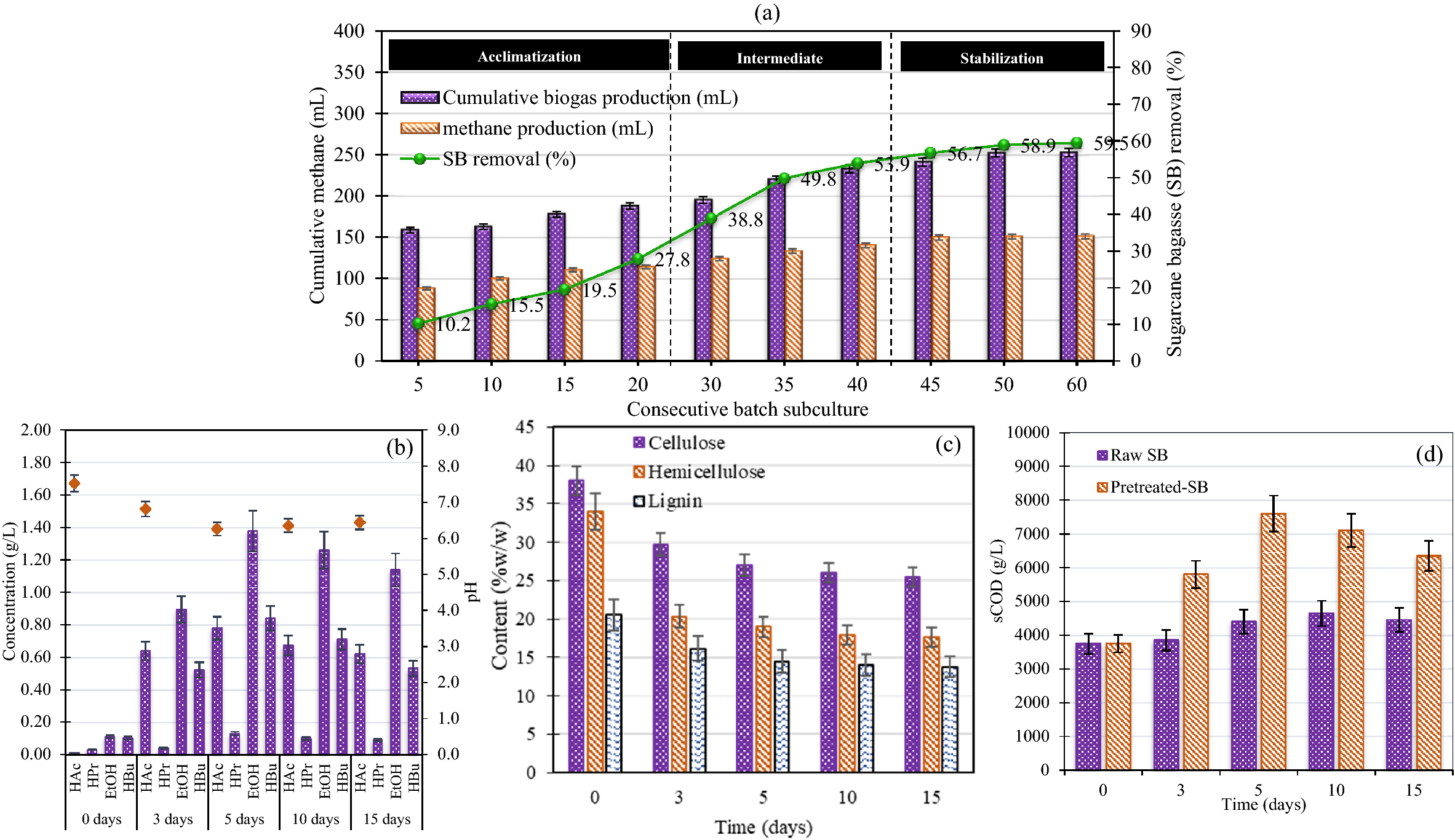

Changes in sugarcane bagasse (SB) compositions and metabolites in the hydrolysate during KKU-MC1 cultivation; methane production and volatile solid removal efficiency (a), volatile organic products (b), cellulose, hemicellulose, and lignin of the SB (c), and soluble COD (sCOD) (d). HAc acetic acid, HBu butyric acid, HPr propionic acid, EtOH; ethanol.
