Figure 11
From: Comparison of three full-field optical measurement techniques applied to vibration analysis

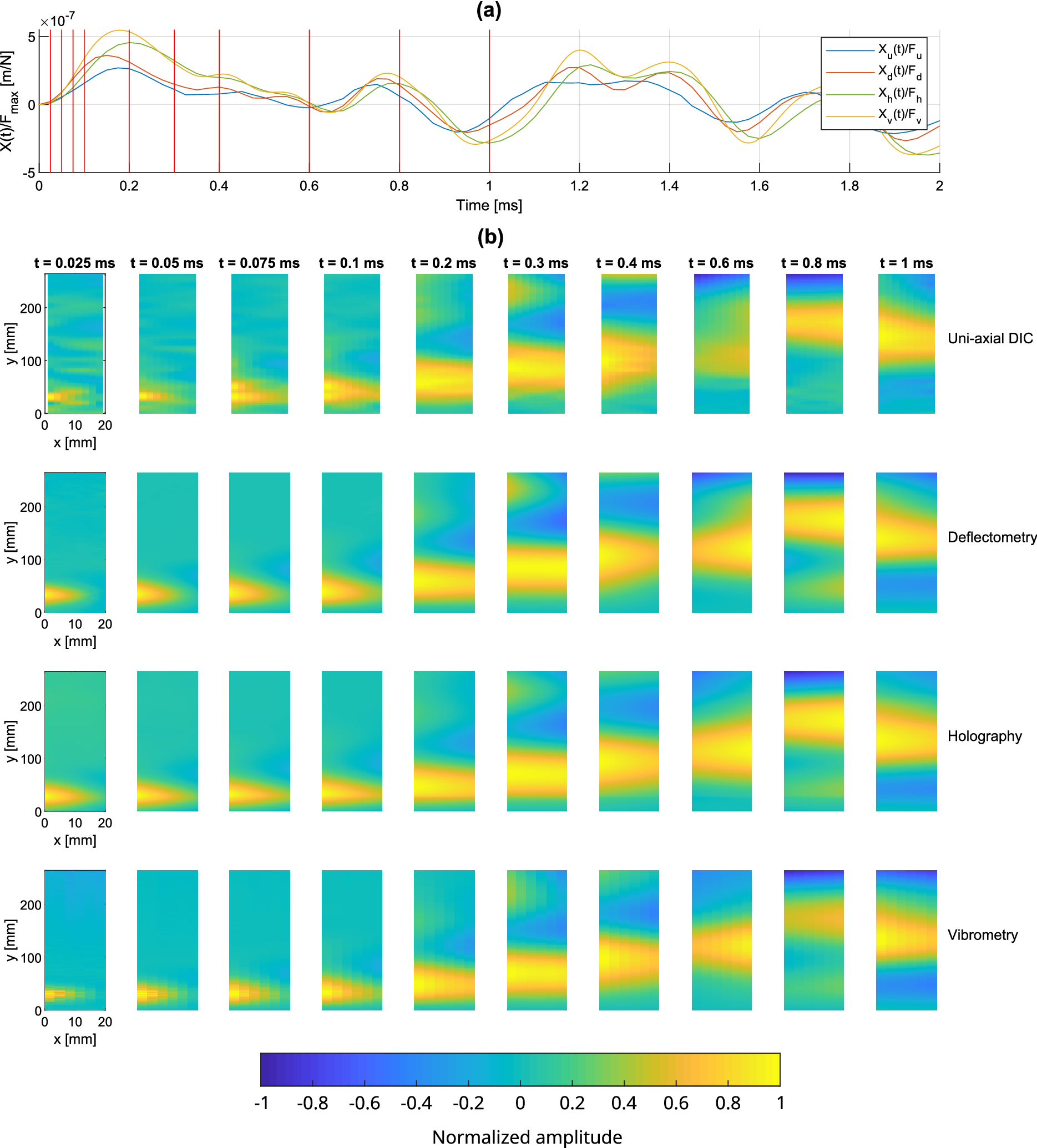

(a) Profiles of the temporal transient displacement responses measured with the uniform beam near the excitation point, (b) operational deflection shapes at 10 selected instants indicated by red lines in (a).
