Figure 14
From: Comparison of three full-field optical measurement techniques applied to vibration analysis

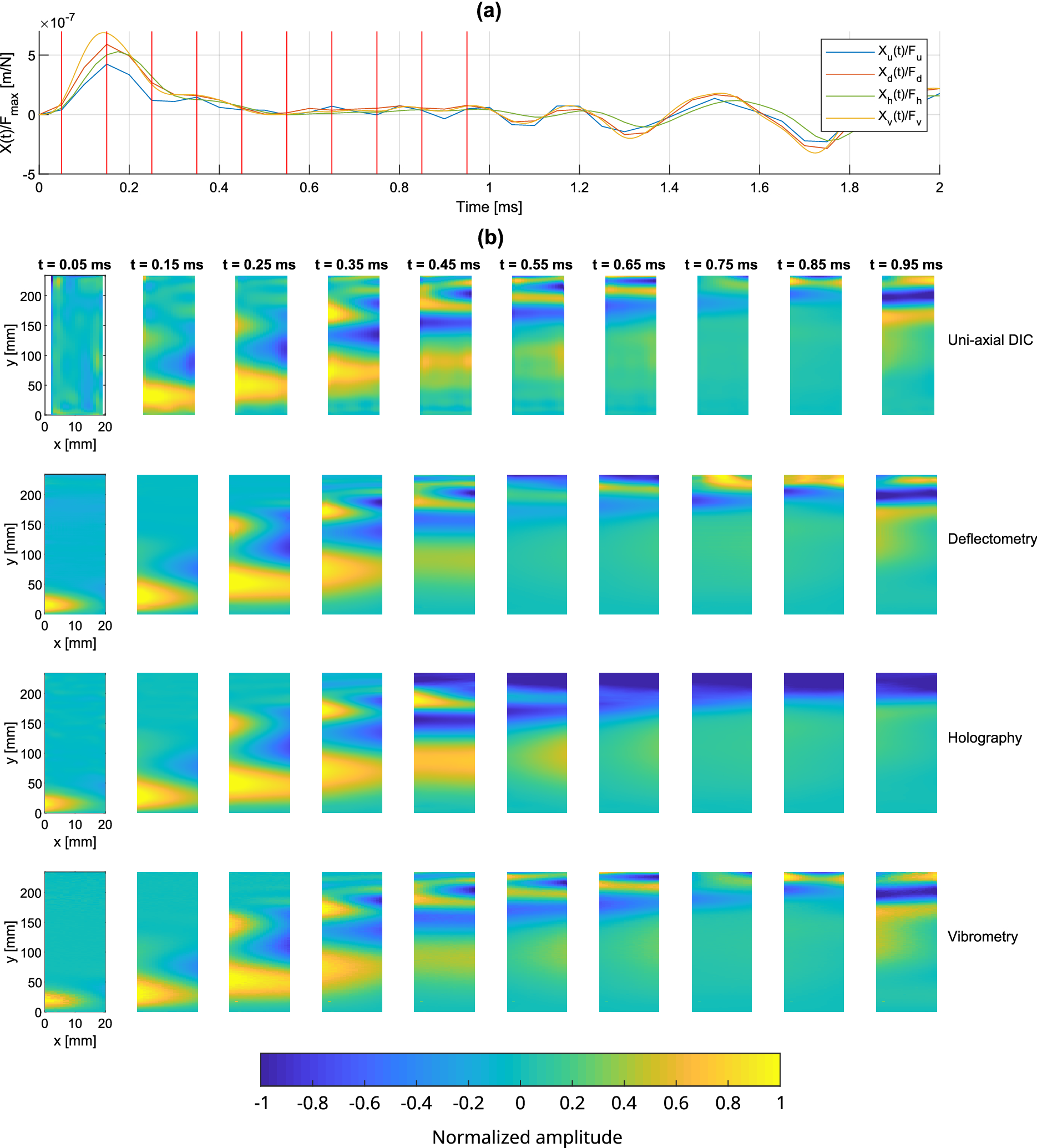

(a) Profiles of the temporal transient displacement responses measured on the non-uniform beam near the excitation point; (b) operational deflection shapes at 10 selected instants indicated by red lines in (a).
