Figure 8
From: Comparison of three full-field optical measurement techniques applied to vibration analysis

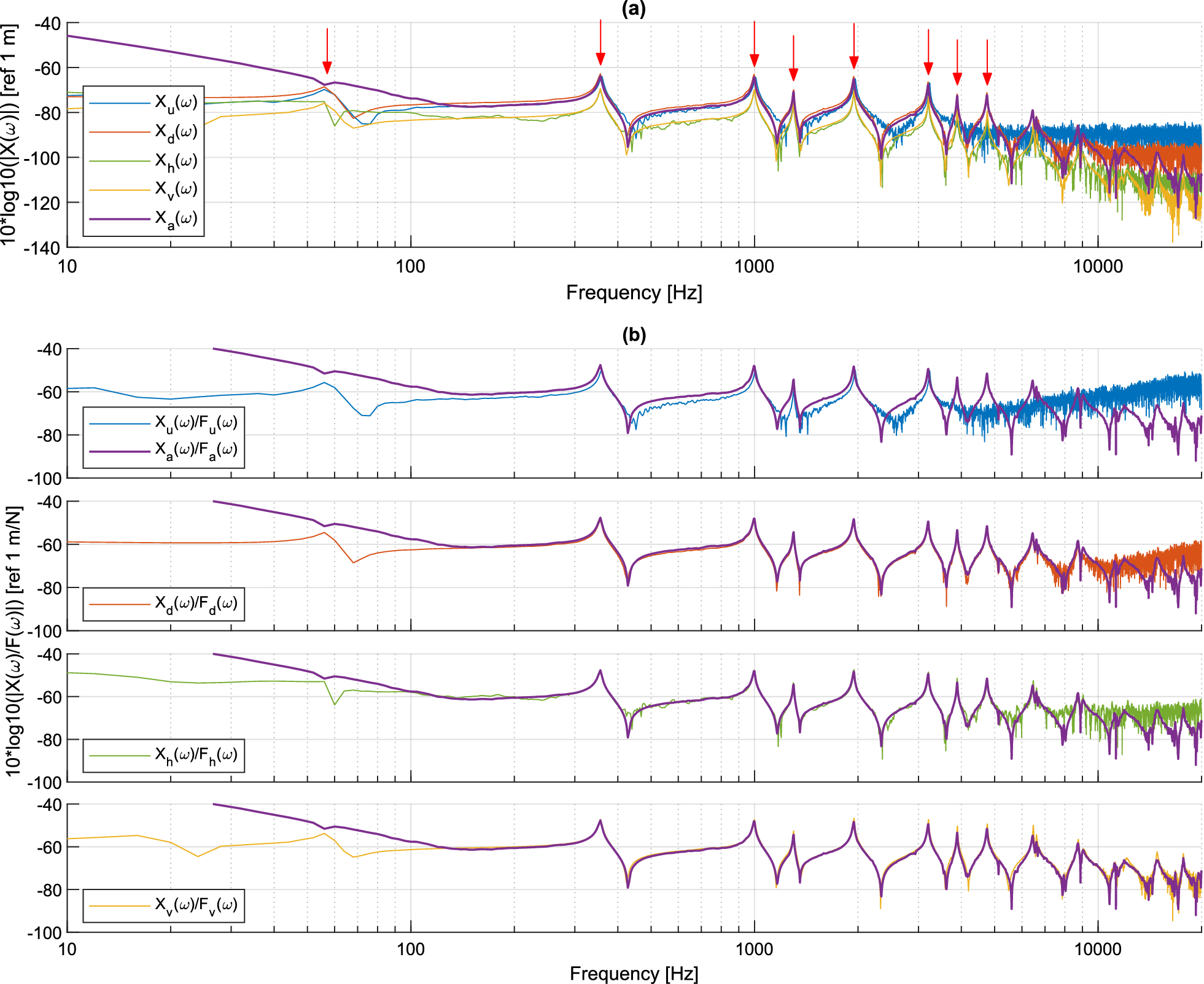

Frequency-domain response of the uniform beam near the excitation point: (a) displacement spectrum, with the 8 modes displayed in Fig. 10 indicated by red arrows; (b) displacement/force FRF comparing each technique to the accelerometer.
