Figure 3

From: Protective effect of Anoectochilus burmannicus extracts and its active compound, kinsenoside on adipocyte differentiation induced by benzyl butyl phthalate and bisphenol A

Figure 3

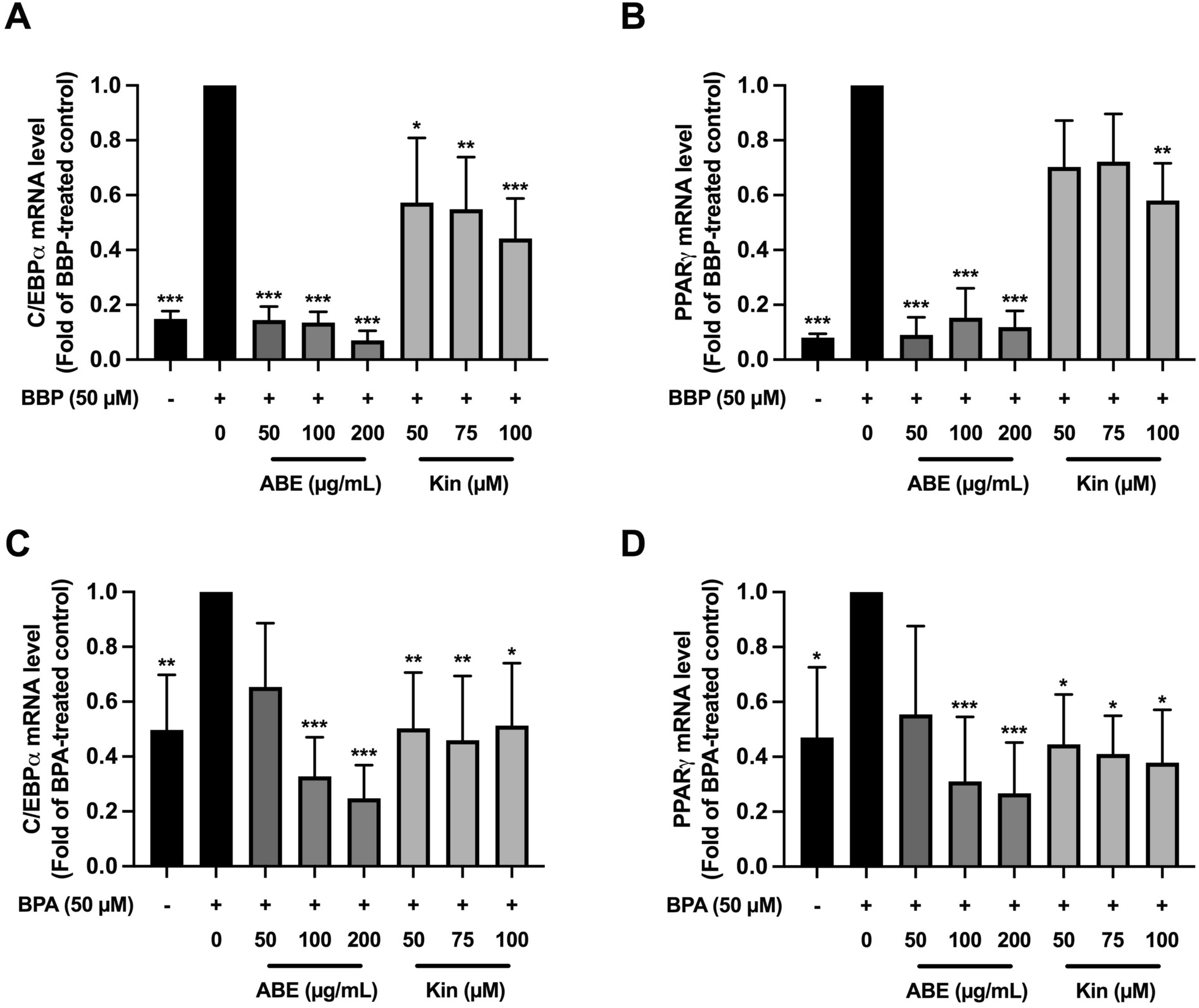

The effect of ABE or Kin on obesogen-induced adipogenic gene expression in 3T3-L1 cells determined by RT-qPCR. C/EBPα (A,C) and PPARγ (B,D) mRNA level in the cells treated with ABE or Kin in the presence of BBP or BPA (50 µM). The data indicated as mean ± SD of three independent experiments *p < 0.05, *p < 0.01 and ***p < 0.001, compared to obesogen-treated control.
